Jinzhi provides SMI LAN series plastic optical fiber products. Plastic optical fiber has been used in industrial control for more than 40 years

PRODUCTSPlastic fiber optic cables and connectors for lighting, industrial, and medical applications

Asahi Kasei sensor is used for 7400 image transmission fiber MCL-1000-1.25 fiber optic cable

Product Code：MCL-1000-1.25

MCL-1000-1.25:An image fiber is mainly used for an industrial scope.

Advisory

  • MCL-1000-1.25

Asahi Kasei sensor is used for 7400  image transmission fiber MCL-1000-1.25 fiber optic cable

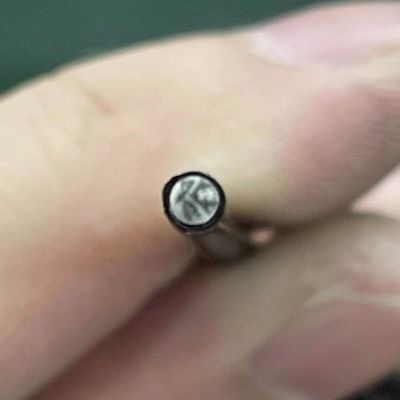

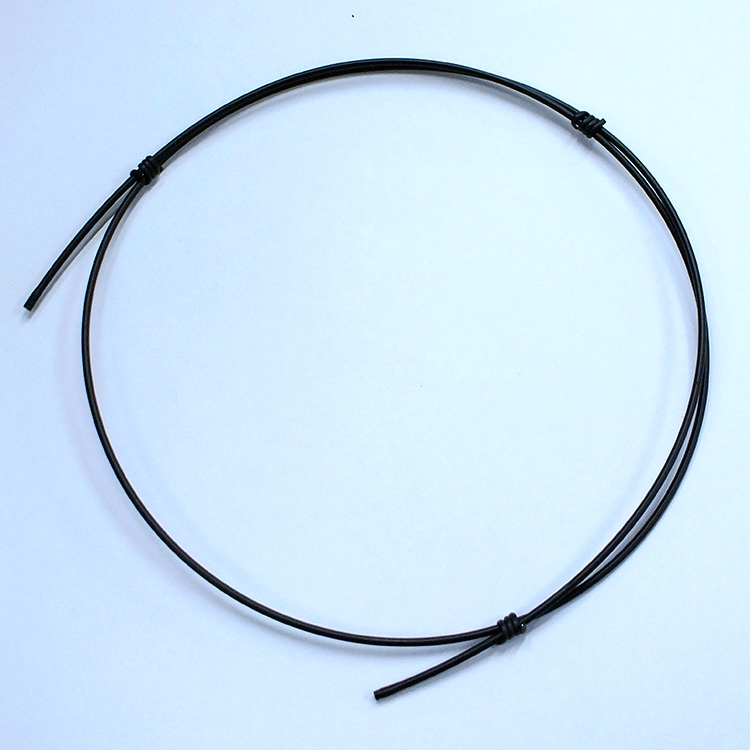

high quality MCL-1000-1.25.jpg

MCI-1000-1.25

Image fiber (for image transmission)

An image fiber is mainly used for an industrial scope. The features include low price, excellent flexibility, little fracture, resulting in easy fabrication and easy junction with other parts, as compared with a glass fiber.

Without jacketting

Grade Nam

MB-350，MBI-450S，MBI-500S，MBI-700，MBI-750，MBI-1000，MBI-1500，MBI-2000，MBL-1000，MBL-1500，MBL-2000

Grade Name

Core Number

Fiber Dia.(mm)

Jacket Dia.(mm)

Jacket Material

NA

MB-350

3,500

0.35

-

-

0.5

MBI-450S

7,400

0.45

-

-

0.5

MBI-500S

7,400

0.5

-

-

0.5

MBI-700

7,400

0.7

-

-

0.5

MBI-750

7,400

0.75

-

-

0.5

MBI-1000

7,400

1.0

-

-

0.5

MBI-1500

7,400

1.5

-

-

0.5

MBI-2000

7,400

2.0

-

-

0.5

MBL-1000

13,000

1.0

-

-

0.5

MBL-1500

13,000

1.5

-

-

0.5

MBL-2000

13,000

2.0

-

-

0.5

With jacketting MCI-1000-1.25

Grade Nam

MCI-750-10，MCI-1000-1.25，MCI-1500-1.75，MCL-1000-1.25，MCL-1500-1.75，MCL-1500-22，MCL-2000-24

Grade Name

Core Number

Fiber Dia.(mm)

Jacket Dia.(mm)

Jacket Material

NA

MCI-750-10

7,400

0.75

1.0

PE(black)

0.5

MCI-1000-1.25

7,400

1.0

1.25

PE(black)

0.5

MCI-1500-1.75

7,400

1.5

1.75

PE(black)

0.5

MCL-1000-1.25

13,000

1.0

1.25

PE(black)

0.5

MCL-1500-1.75

13,000

1.5

1.75

PE(black)

0.5

MCL-1500-22

13,000

1.5

2.2

PE(black)

0.5

MCL-2000-24

13,000

2.0

2.4

PE(black)

0.5

 MCI-1000-1.25
