Jinzhi provides SMI LAN series plastic optical fiber products. Plastic optical fiber has been used in industrial control for more than 40 years

PRODUCTSPlastic fiber optic cables and connectors for lighting, industrial, and medical applications

​Asahi Kasei sensor is used for 7400 image transmission fiber MCI-750-10 fiber optic cable

Product Code：MCI-750-10

MCI-750-10:An image fiber is mainly used for an industrial scope

Advisory

  • MCI-750-10

Asahi Kasei sensor is used for 7400 image transmission fiber MCI-750-10 fiber optic cable



89392aff90a7a5c212e94fc9ccd767f5_highperformanceandhighquality%E2%80%8BMCI-750-101817596.jpg

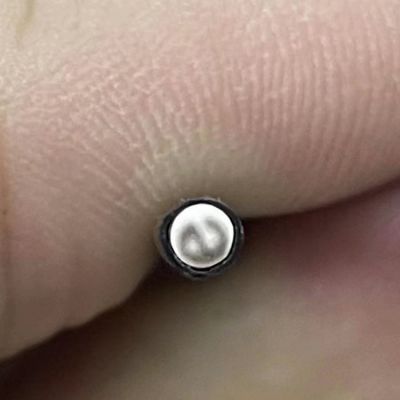

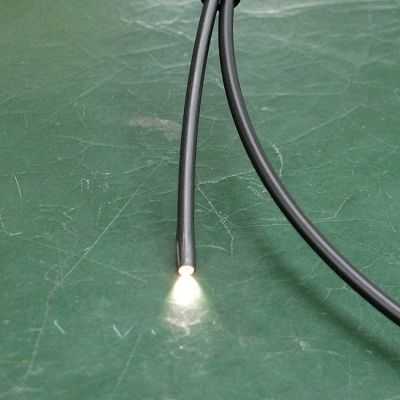

Image fiber (for image transmission)

An image fiber is mainly used for an industrial scope. The features include low price, excellent flexibility, little fracture, resulting in easy fabrication and easy junction with other parts, as compared with a glass fiber.MCI-750-10

Without jacketting MCI-750-10

Grade Nam

MB-350，MBI-450S，MBI-500S，MBI-700，MBI-750，MBI-1000，MBI-1500，MBI-2000，MBL-1000，MBL-1500，MBL-2000

Grade Name

Core Number

Fiber Dia.(mm)

Jacket Dia.(mm)

Jacket Material

NA

MB-350

3,500

0.35

-

-

0.5

MBI-450S

7,400

0.45

-

-

0.5

MBI-500S

7,400

0.5

-

-

0.5

MBI-700

7,400

0.7

-

-

0.5

MBI-750

7,400

0.75

-

-

0.5

MBI-1000

7,400

1.0

-

-

0.5

MBI-1500

7,400

1.5

-

-

0.5

MBI-2000

7,400

2.0

-

-

0.5

MBL-1000

13,000

1.0

-

-

0.5

MBL-1500

13,000

1.5

-

-

0.5

MBL-2000

13,000

2.0

-

-

0.5

With jacketting MCI-750-10

Grade Nam

MCI-750-10，MCI-1000-1.25，MCI-1500-1.75，MCL-1000-1.25，MCL-1500-1.75，MCL-1500-22，MCL-2000-24

Grade Name

Core Number

Fiber Dia.(mm)

Jacket Dia.(mm)

Jacket Material

NA

MCI-750-10

7,400

0.75

1.0

PE(black)

0.5

MCI-1000-1.25

7,400

1.0

1.25

PE(black)

0.5

MCI-1500-1.75

7,400

1.5

1.75

PE(black)

0.5

MCL-1000-1.25

13,000

1.0

1.25

PE(black)

0.5

MCL-1500-1.75

13,000

1.5

1.75

PE(black)

0.5

MCL-1500-22

13,000

1.5

2.2

PE(black)

0.5

MCL-2000-24

13,000

2.0

2.4

PE(black)

0.5

 MCI-750-10
