Jinzhi optical fiber cable used in Mitsubishi PLC motor servo system

Mitsubishi Electric J4·J3 series SSCNETⅢ optical fiber

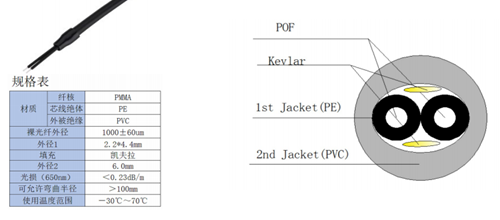

Optical fiber for use in discs                                                Structure diagram

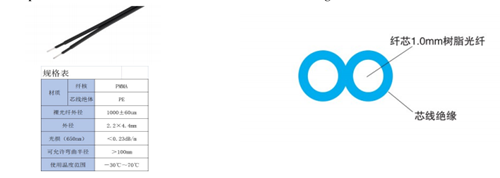

Optical fiber for off-disk use-A                                         Structure diagram

Optical fiber for off-disk use-B                                            Structure diagram

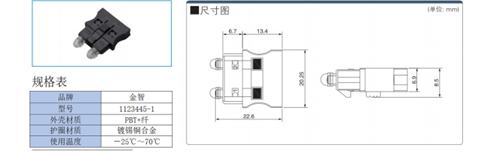

The optical fiber connector

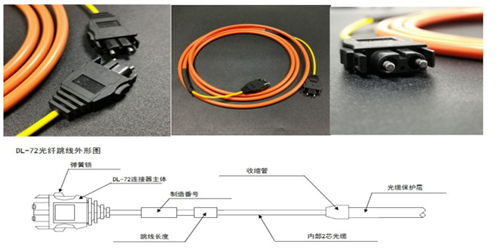

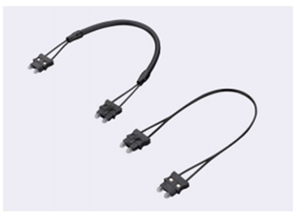

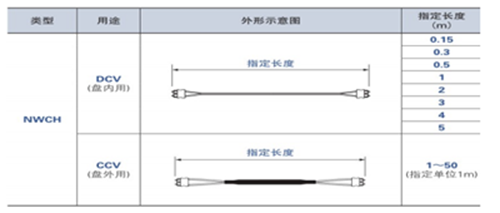

Mitsubishi Electric J4·J3 series SSCNETⅢ fiber jumper

Features of Mitsubishi Electric J3 and J4 optical fibers;

● Quickly connect the servo amplifier to the controller or servo amplifier

connections between amplifiers.

● High-precision, high-speed control via optical fiber transmission

●The length of the off-panel cable can be freely specified in units of 1m.

Application of Ryo servo motor

1. Mitsubishi MITSUBISHI SSCNET III cable is suitable for MR-J3\J4-B servo amplifier;

2. MR-J4W2-B\MR-J4W3-B multi-axis integrated servo amplifier;

3. Servo CN1A is used to connect servo controller or front axle servo amplifier;

4. Servo CN1B is used to connect the rear axle of the servo amplifier;

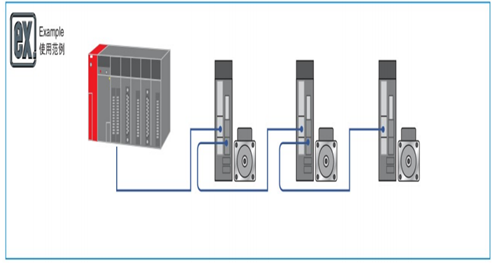

Application diagram:

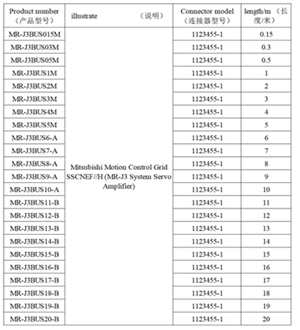

Specifications

HPCS large core diameter long distance fiber optic cable used in Mitsubishi Electric series

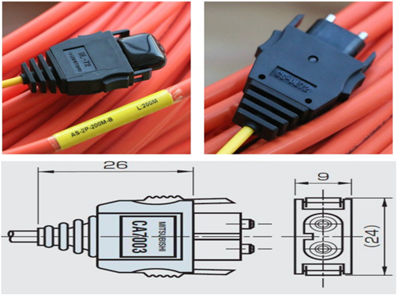

DL-72/CA7003 200/230mm fiber optic connector

HPCS fiber optic cable

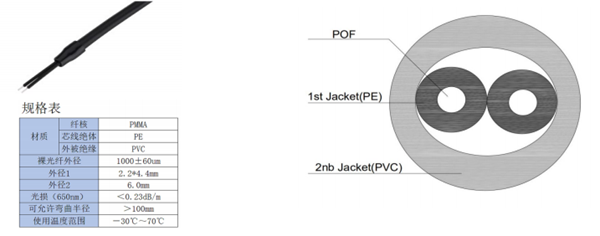

Sectional view:

Optical cable specifications: AS-A (in yellow cabinet), AS-B (in orange indoor), AS-D (in black outdoor); Sumitomo 2-FOD-V (in orange indoor), 2-D-LAP (in black outdoor)

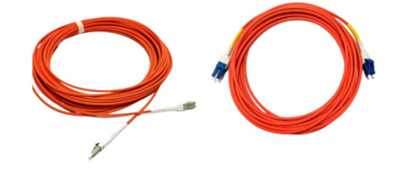

HPCS Fiber Patch Cords:

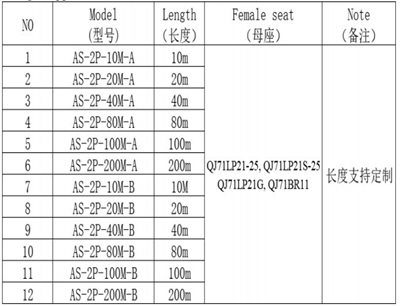

Selection table: length supports customization；

The product is suitable for:

1. OKUMA CNC optical fiber, Hitachi PLC, Fuji PLC, Mitsubishi QJ71LP21-25, QJ71LP21S-25, QJ72LP25-25, GT15-J71LP23-25, Q80BD-J71LP21-25,

2. Q81BD-J71LP21-25, Q80BD-J71LP21S-25, QJ72LP25, A1SJ71QLP21, AJ71QLP21, A1SJ71QLP21S, AJ71QLP21S, A1SJ71LP21,

 3. AJ71LP21, A1SJ72QLP25, AJ72QLP25, AJ72LP25, etc.

CC-Link fiber optic cable application Mitsubishi Electric open fieldbus

"CC-Link (Control & Communication Link, control and communication link system) is an open field bus newly introduced by Mitsubishi Electric, with large data capacity, multi-level optional communication speed, and it is a device layer-based system. network, which can also cover higher-level control layers and lower-level sensing layers

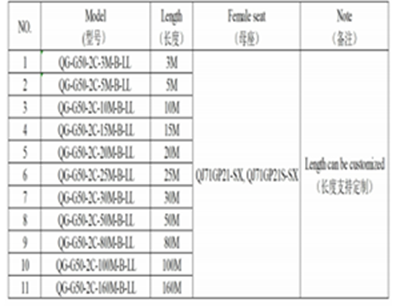

Selection table:

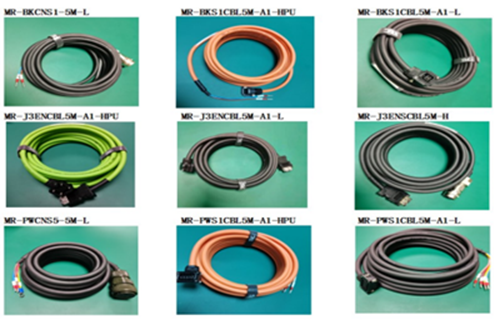

Power line coding line applied to Mitsubishi Electric

                        Welcome to browse our company's solutions related to industrial applications.

                                                       If you need further understanding of

                        technical knowledge and product information, the contact information is as follows:

                          Toll free: 400-160-8187 E-mail: sales@kinz-pof.com Website: www.kinz-pof .com
