sc patch cord fiber optic jumper for Industrial equipment

Product Code:SC patch cord

SC patch cord :sc cable fusionadora de fibra optica Black LC duplex fiber optic jumper for Industrial equipment

Advisory

  • SC patch cord


sc patch cord fiber optic jumper for Industrial equipment


The product uses imported ceramic pins and imported high-quality optical cables.

sc patch cord

The introduction of the most advanced grinding technology and equipment from abroad is beneficial to ensure that the technical parameters of the optical fiber grinding center are offset, the recess of the optical fiber, and the optical fiber with the curvature radius of the non-scratched ceramic end face meets the standard requirements.

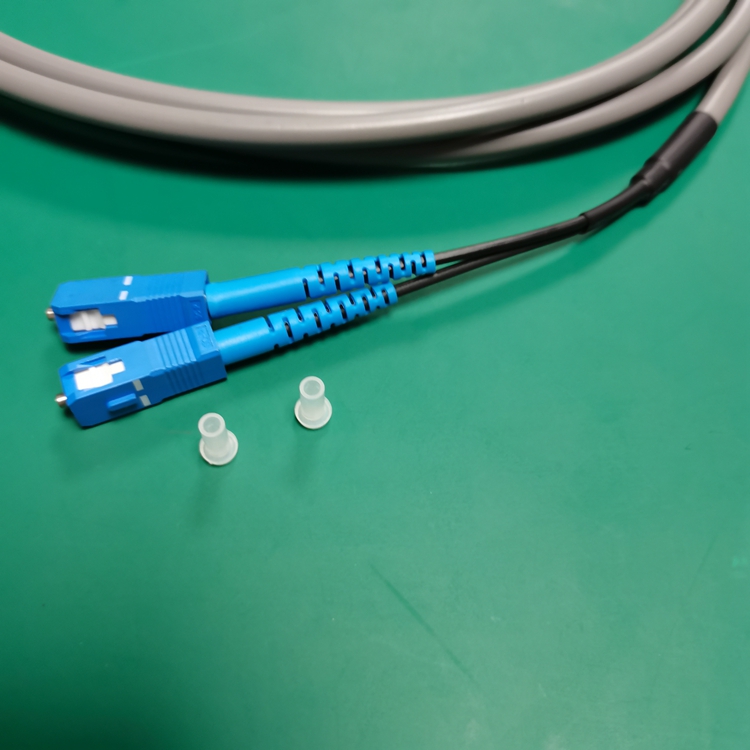

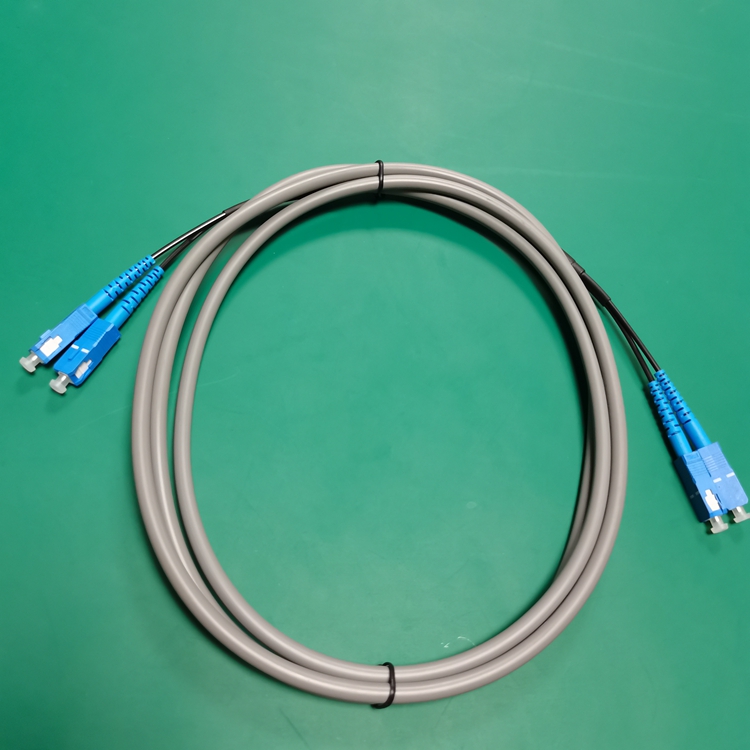

8fdd74957004b57769c4ebdea494d2e6_SCpatchcord1422215.jpg65fa10b4fa7d1fa367c4fc99fbc72b8a_SCpatchcordJumper8353660.jpg


sc patch cord

technical parameter:


Fiber type: OM3 multimode dual core


Optical fiber interface: SC-LC / SC / FC / ST


Cable length: 3 meters


End face type: PC, UPC and APC optional


Diameter of the inner coating: 125μm.


Core diameter: 50 /62.5μm (multimode); 9μm (single mode).


Tensile strength: 15Kgf (except φ0.9mm optical fiber). A kind


Fiber diameter: 3.0mm / 2.0mm / 0.9mm optional.


Minimum bending radius: 10× cable diameter.


Working temperature: -40℃-+75℃.


Storage temperature: -50℃— +85℃.


Repeat insertion and removal time: 1000 times.


General single-mode patch cord guarantee index: Insertion loss: ≤0.2dB (APC / UPC);


Return loss: ≥50dB (UPC); ≥60dB (APC).
