SC pigtail  Fibra optica de plastico SC-SC plastic optical fiber cable Fibre Optical

The product uses imported ceramic pins and imported high-quality optical cables.

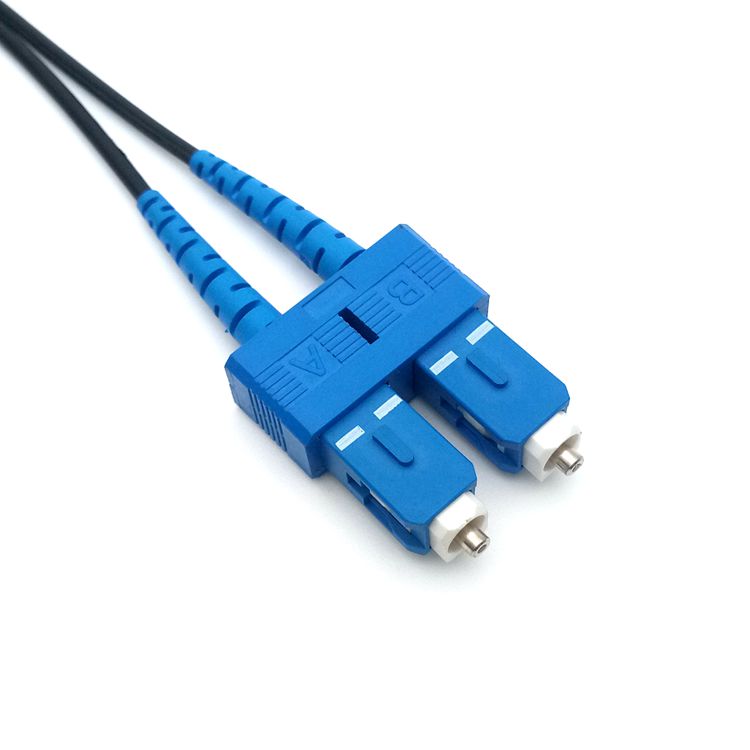

SC fiber jumper

The introduction of the most advanced grinding technology and equipment from abroad is beneficial to ensure that the technical parameters of the optical fiber grinding center are offset, the recess of the optical fiber, and the optical fiber with the curvature radius of the non-scratched ceramic end face meets the standard requirements.

The insertion loss is small, the return loss is large; the interchangeability is good, the repeated plugging performance is good, and the use is convenient.

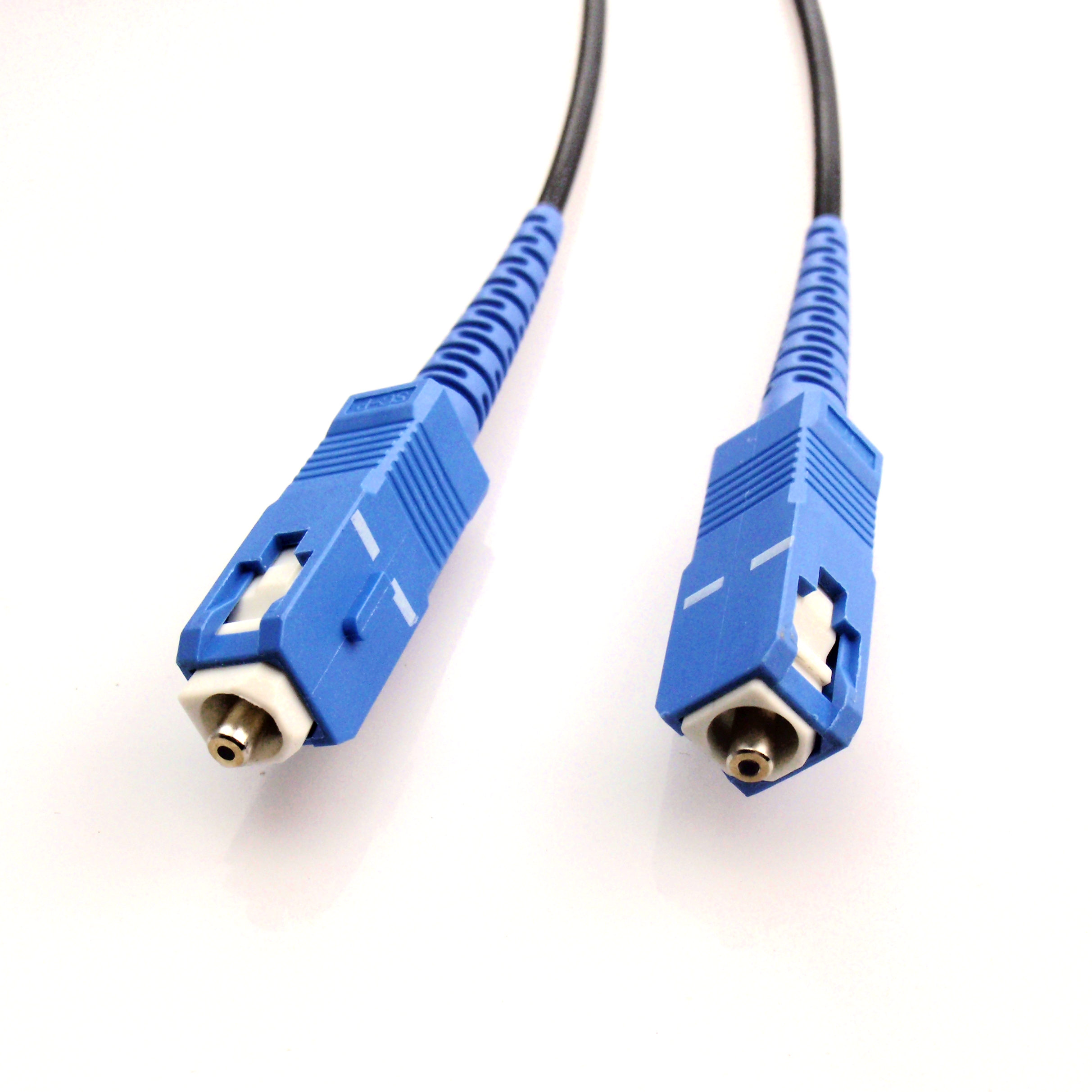

SC fiber jumper

technical parameter:

Fiber type: OM3 multimode dual core

Optical fiber interface: SC-LC / SC / FC / ST

Cable length: 3 meters

End face type: PC, UPC and APC optional

Diameter of the inner coating: 125μm.

Core diameter: 50 /62.5μm (multimode); 9μm (single mode).

Tensile strength: 15Kgf (except φ0.9mm optical fiber). A kind

Fiber diameter: 3.0mm / 2.0mm / 0.9mm optional.

Minimum bending radius: 10× cable diameter.

Working temperature: -40℃-+75℃.

Storage temperature: -50℃— +85℃.

Repeat insertion and removal time: 1000 times.

General single-mode patch cord guarantee index: Insertion loss: ≤0.2dB (APC / UPC);

Return loss: ≥50dB (UPC); ≥60dB (APC).

Application areas:

SC fiber jumper

Optical transmission network, optical fiber communication system, data transmission network, image transmission network, optical fiber access network;

Optical fiber data transmission, CATV optical fiber, local area network (LAN), test equipment;

Use fiber to the home FTTH, fiber modem and other connections
