Mitsubishi SSCNETⅢ/H fiber optic patch cord:

Mitsubishi Servo Fiber MR-J3BUS3M MR-J3BUS03M  MR-J3BUS05M MR-J3BUS1M MR-J3BUS5M MR-J3BUS10M ,Servo Mitsubishi Fiber J3\J4-B  Original  Fiber Optic Cable A66L-6001-0023

Jinzhi Optoelectronics provides servo plastic optical fiber cables, connectors, and finished jumpers with connectors. If customers want to process them by themselves, Jinzhi can provide technical support; Jinzhi Optoelectronics provides Mitsubishi servo plastic optical fiber cables (MR-J3\J4- B, G380, G396, CNC numerical control)

description:

Jinzhi Optoelectronics provides servo plastic optical fiber cables, connectors, and finished jumpers with connectors. If customers want to process them by themselves, Jinzhi can provide technical support; Jinzhi Optoelectronics provides Mitsubishi servo plastic optical fiber cables (MR-J3\J4- B, G380, G396, CNC), two types of connectors, imported and domestic, imported connectors have brand value protection, domestic alternative products have more advantageous prices, and the quality is very stable. The original imported Japanese optical fiber can ensure stable data transmission; Precision grinding and polishing, full factory inspection, better performance, superior quality, and ultra-industry standard assembly technology have been widely used in Mitsubishi servo, FANUC servo CNC, and automation equipment.

application:

Mitsubishi MITSUBISHI SSCNET III cable is suitable for MR-J3\J4-B servo amplifier

MR-J4W2-B\MR-J4W3-B multi-axis integrated servo amplifier

Servo CN1A is used to connect servo controller or front axis servo amplifier

Servo CN1B is used to connect the rear axis of the servo amplifier

Optical fiber connector specifications:

1123445-1

TOCP200Q

CF2071

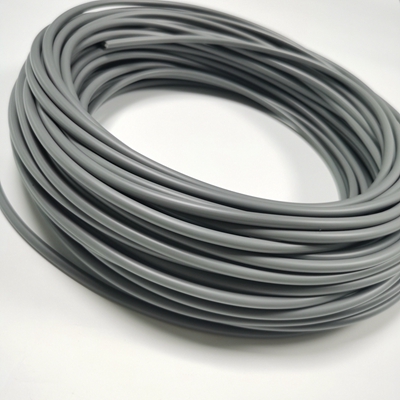

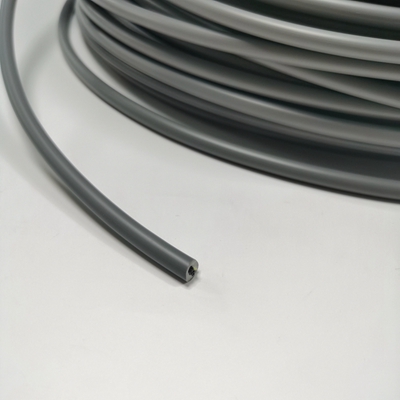

Optical fiber and cable specifications:

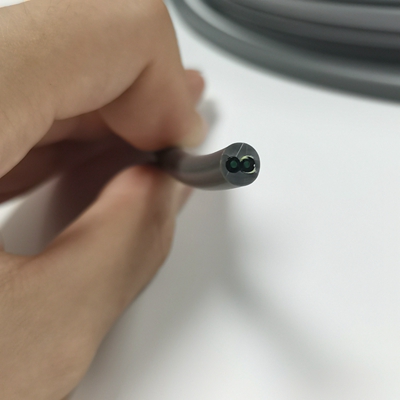

1.0*2.2*4.4mm Double-core side-by-side plastic optical fiber, fiber core diameter: 1mm

1.0*2.2*4.4*6.0mm Duplex plastic optical fiber, fiber core diameter: 1mm

1.0*2.2*4.4*6.0mm dual core with Kevlar reinforced plastic optical fiber, fiber core diameter: 1mm

HPCF200/230um special fiber

GOF multimode glass fiber
