Jinzhi provides SMI LAN series plastic optical fiber products. Plastic optical fiber has been used in industrial control for more than 40 years

PRODUCTSPlastic fiber optic cables and connectors for lighting, industrial, and medical applications

Mitsubishi SSCNET III MR-J3BUS03M J4BUS03M replacement,Fiber Optic Cable A66L-6001-0023

Product Code:

SSCNET III MR-J3BUS03M J4BUS03M replacement

Advisory

Mitsubishi SSCNETⅢ/H fiber optic patch cord:


Mitsubishi SSCNET III MR-J3BUS03M J4BUS03M replacement Fiber Optic Cable A66L-6001-0023



Jinzhi Optoelectronics provides servo plastic optical fiber cables, connectors, and finished jumpers with connectors. If customers want to process them by themselves, Jinzhi can provide technical support; Jinzhi Optoelectronics provides Mitsubishi servo plastic optical fiber cables (MR-J3\J4- B, G380, G396, CNC numerical control)


description:


Jinzhi Optoelectronics provides servo plastic optical fiber cables, connectors, and finished jumpers with connectors. If customers want to process them by themselves, Jinzhi can provide technical support; Jinzhi Optoelectronics provides Mitsubishi servo plastic optical fiber cables (MR-J3\J4- B, G380, G396, CNC), two types of connectors, imported and domestic, imported connectors have brand value protection, domestic alternative products have more advantageous prices, and the quality is very stable. The original imported Japanese optical fiber can ensure stable data transmission; Precision grinding and polishing, full factory inspection, better performance, superior quality, and ultra-industry standard assembly technology have been widely used in Mitsubishi servo, FANUC servo CNC, and automation equipment.


application:


Mitsubishi MITSUBISHI SSCNET III cable is suitable for MR-J3\J4-B servo amplifier

MR-J4W2-B\MR-J4W3-B multi-axis integrated servo amplifier

Servo CN1A is used to connect servo controller or front axis servo amplifier

Servo CN1B is used to connect the rear axis of the servo amplifier



Optical fiber connector specifications:


1123445-1

TOCP200Q

CF2071


Optical fiber and cable specifications:

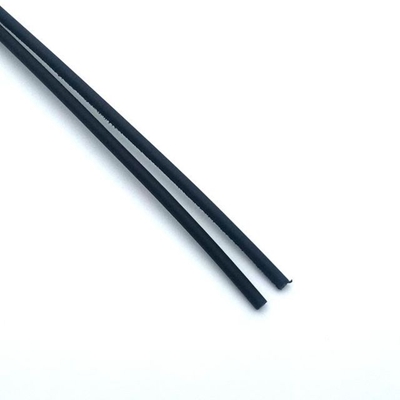

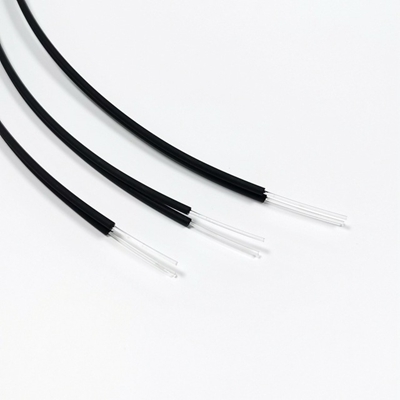

1.0*2.2*4.4mm Double-core side-by-side plastic optical fiber, fiber core diameter: 1mm

1.0*2.2*4.4*6.0mm Duplex plastic optical fiber, fiber core diameter: 1mm

1.0*2.2*4.4*6.0mm dual core with Kevlar reinforced plastic optical fiber, fiber core diameter: 1mm

HPCF200/230um special fiber

GOF multimode glass fiber
