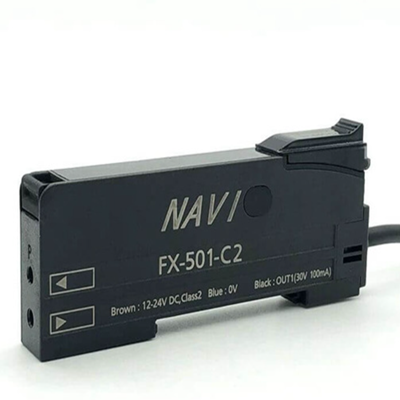

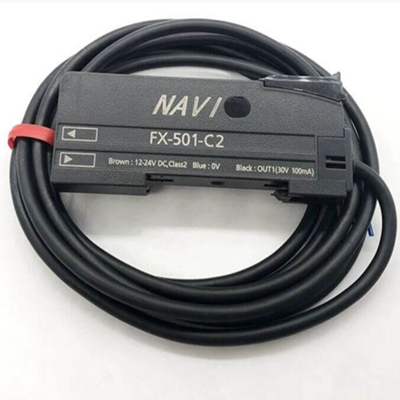

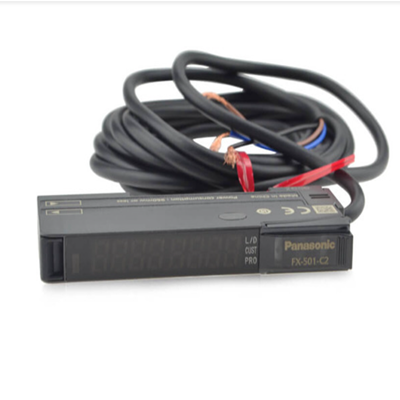

Panasonic Digital Fiber Optic Sensors FX-505-C2 FX-505P-C2

Digital Fiber Optic Sensors

NPN open-collector transistor
• Maximum sink current: 100 mA (2-output type and cable type are 50 mA) (Note 2)
• Applied voltage: 30 V DC or less (between output and 0 V)
• Residual voltage: 2 V or less (Note 3) (at maximum sink current)
PNP open-collector transistor
• Maximum source current: 100 mA (2-output type and cable type are 50 mA) (Note 2)
• Applied voltage: 30 V DC or less (between output and +V)
• Residual voltage: 2 V or less (Note 3) (at maximum source current)

Digital Fiber Optic Sensors

Digital Fiber Optic Sensors

NPN non-contact input
• Signal condition
High: +8 V to +V DC or Open
Low: 0 to +1.2 V DC
(at 0.5 mA source current)
• Input impedance: 10 kΩ approx.
PNP non-contact input
• Signal condition
High: +4 V to +V DC (at 3 mA sink current)
Low: 0 to +0.6 V DC or Open
• Input impedance: 10 kΩ approx.
