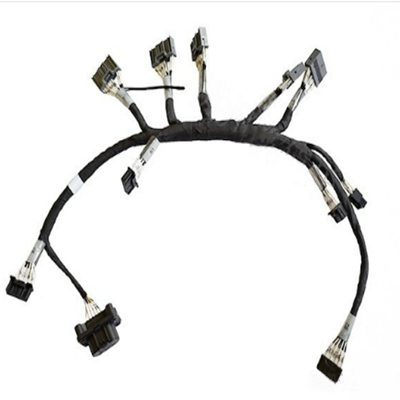

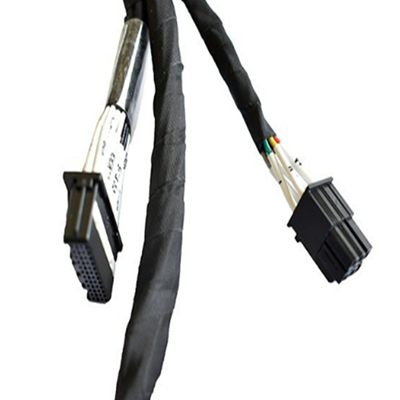

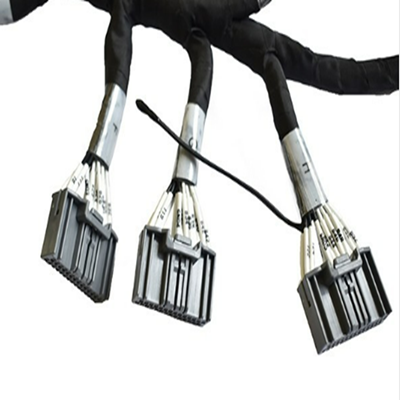

TE .025 series 40pin 2.20mm natural connectors and 1332 22AWG cable wire harness for BMS system Communication equipment

Energy storage refers to the process of storing energy through a medium or device and releasing it when needed. Energy storage harnesses play a role in signal and data transmission, as well as power supply throughout the entire energy storage industry chain. Energy storage systems require stable and reliable signal connections, which imposes very strict requirements on the performance of energy storage harnesses, such as high temperature resistance, high voltage resistance, aging resistance, electromagnetic shielding, and flame retardancy.BMS communication harness

Classification of energy storage harnesses

BMS communication harness

Energy storage harnesses are mainly divided into two categories: high-voltage energy storage harnesses and low-voltage energy storage harnesses.

1. High voltage energy storage harness: power line between boxes; Main control box power cord; Power line of combiner box; DC charging stand; DC gun; AC charging stand; AC gun.

2. Low voltage energy storage wiring harness: The wiring harness inside the battery box (including voltage acquisition line, temperature sensing acquisition line, module communication line, box communication line, and supporting electrical assembly line); Main control box wiring harness; Junction box wiring harness; External communication harness (including the external connection line of the main control box and the communication bus of the box); Charging cabinet wiring harness (including fan power supply, starting power supply, GPRS wiring harness, temperature control wiring harness, and DC/DC power supply wiring harness); Charging station wiring harness (including emergency stop switch and lighting circuit).BMS communication harness
