Jinzhi provides SMI LAN series plastic optical fiber products. Plastic optical fiber has been used in industrial control for more than 40 years

PRODUCTSPlastic fiber optic cables and connectors for lighting, industrial, and medical applications

Asahi Kasei sensor is used for 7400 image transmission fiber MBL-1500 fiber light

Product Code：MBL-1500

MBL-1500:The features include low price, excellent flexibility, little fracture, resulting in easy fabrication .

Advisory

  • MBL-1500

Asahi Kasei sensor is used for 7400 image transmission fiber MBL-1500 fiber light

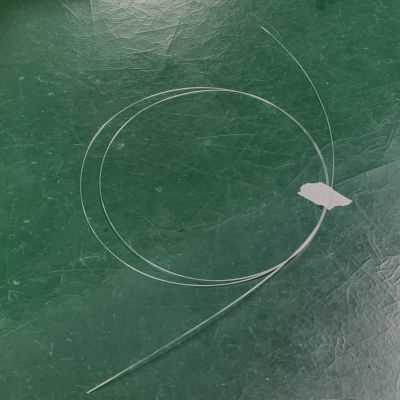

Image fiber (for image transmission)

 MBL-1500

An image fiber is mainly used for an industrial scope. The features include low price, excellent flexibility, little fracture, resulting in easy fabrication and easy junction with other parts, as compared with a glass fiber.

Without jacketting

Grade Nam

MB-350，MBI-450S，MBI-500S，MBI-700，MBI-750，MBI-1000，MBI-1500，MBI-2000，MBL-1000，MBL-1500，MBL-2000, MBL-1500

Grade Name

Core Number

Fiber Dia.(mm)

Jacket Dia.(mm)

Jacket Material

NA

MB-350

3,500

0.35

-

-

0.5

MBI-450S

7,400

0.45

-

-

0.5

MBI-500S

7,400

0.5

-

-

0.5

MBI-700

7,400

0.7

-

-

0.5

MBI-750

7,400

0.75

-

-

0.5

MBI-1000

7,400

1.0

-

-

0.5

MBI-1500

7,400

1.5

-

-

0.5

MBI-2000

7,400

2.0

-

-

0.5

MBL-1000

13,000

1.0

-

-

0.5

MBL-1500

13,000

1.5

-

-

0.5

MBL-2000

13,000

2.0

-

-

0.5

With jacketting

Grade Nam

MCI-750-10，MCI-1000-1.25，MCI-1500-1.75，MCL-1000-1.25，MCL-1500-1.75，MCL-1500-22，MCL-2000-24 , MBL-1500

Grade Name

Core Number

Fiber Dia.(mm)

Jacket Dia.(mm)

Jacket Material

NA

MCI-750-10

7,400

0.75

1.0

PE(black)

0.5

MCI-1000-1.25

7,400

1.0

1.25

PE(black)

0.5

MCI-1500-1.75

7,400

1.5

1.75

PE(black)

0.5

MCL-1000-1.25

13,000

1.0

1.25

PE(black)

0.5

MCL-1500-1.75

13,000

1.5

1.75

PE(black)

0.5

MCL-1500-22

13,000

1.5

2.2

PE(black)

0.5

MCL-2000-24

13,000

2.0

2.4

PE(black)

0.5

 MBL-1500
