Image-transmitting Glass fiber pixel is used in the field of endoscope image-transmitting

1. What is an imaging fiber?

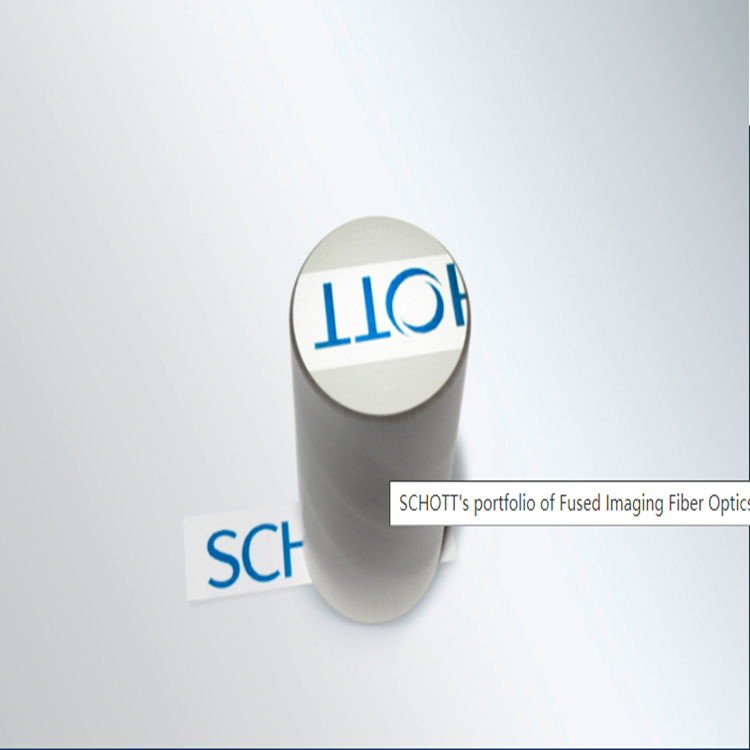

 Glass fiber pixel

1）. The imaging fiber is a microstructured, ultra-multi-core fiber, with each core serving as a pixel.

 It is the core component of the medical device endoscope system. In the national standard,

the fiber optic component must be replaced every 10 times of use. Compared with the glass fiber of the quartz series, the plastic imaging fiber has the advantages of low price,

excellent flexibility, easy bending, easy processing, and high connection with components.

  Glass fiber pixel

The model of imaging fiber:

there are 1300 image transmission fiber and 7400 image transmission fiber,

which are Mullttii-corre POF:MBL-450S,MBL-750S,MBL-1000S,MBL-1500S,MBL-2000S

MCI-750-10,MCI-1000-1.25,MBI-500S(MB-6670N-E-02),MCL-1500-1.75 (MC-7670N-E-02),MCL

-2000-24(MC-7680N-E-01)

  Glass fiber pixel

2. What are the characteristics of imaging fiber?

2.1) 1mm cable diameter, can be inserted into the small hole with a cable diameter of only 3mm.

2.2) Waterproof structure, the waterproofing of cables and cable heads can be applied to various occasions.

2.3) 13000 pixel fiber, equipped with high density fiber.

2.4) Industrial handheld oscilloscopes are suitable for visual needs. Dark, narrow special applications can be seen.
