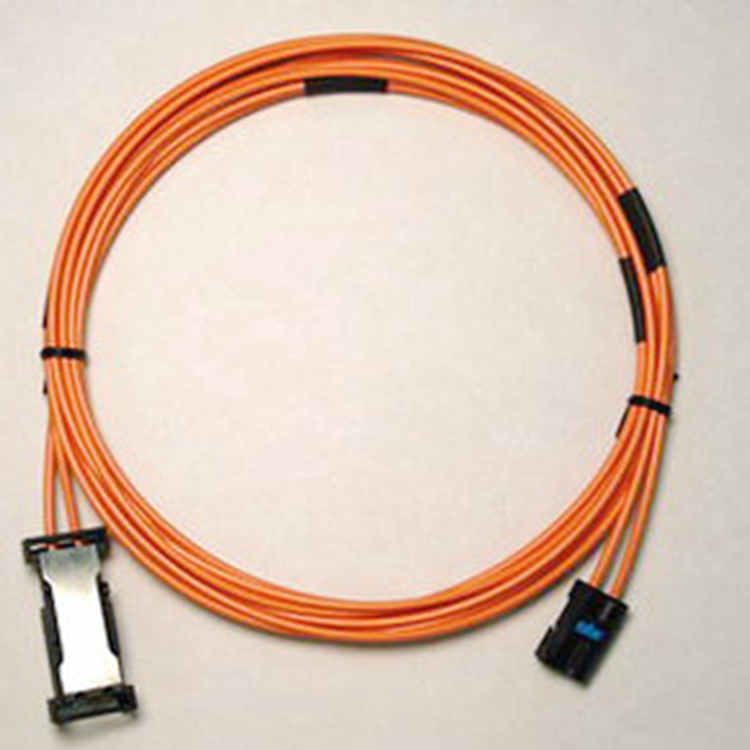

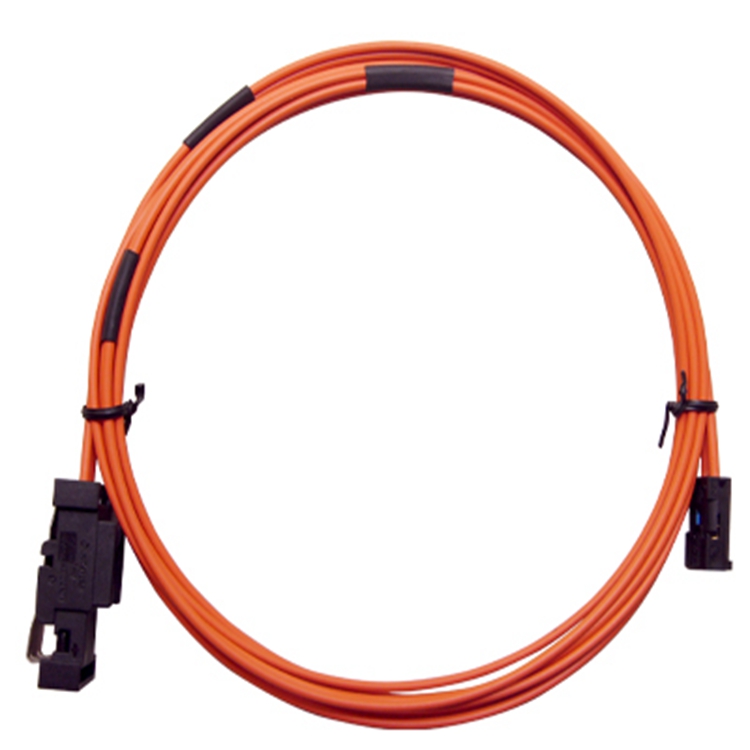

Supply automotive MOST-1355752 fiber optic jumper bus plastic fiber  jumper

Product description:

MOST-1355752

M.O.S.T. (Media Oriented SystemsTransport multimedia guidance system transmission) is a local area network that connects audio devices, vehicle television, global positioning system and vehicle telephone equipment. It plays a leading role in the field of short-distance data transmission and industrial automation, especially in improving automobile safety performance and infotainment function. The development and application of plastic optical fiber connection technology; with the application of plastic optical fiber in automobile, a series of M.O.S.T. Plastic optical fiber jumper, with strict end polishing technology and rigorous optical fiber testing methods to ensure M.O.S.T. Plastic optical fiber jumper with high quality.

Product features:

MOST-1355752

◆ Light weight, saving car wiring space.

◆ The data is not affected by electromagnetic interference.

◆ High speed data transmission and large data volume. MOST25 standard data rate is 25Mbps, MOST150 standard maximum data rate is 150Mbps.

◆ It can transmit synchronous data, asynchronous data and control data.

◆ Support plug and play (Plugand Play) mechanism.

◆ There are many devices connected to multimedia.

Scope of application:

MOST-1355752

◆ Digital broadcasting.

◆ Video display.

◆ Interactive security system.

◆ GPS navigation system.

◆ Multimedia entertainment system.

MOST-1355752

Product features:

MOST-1355752

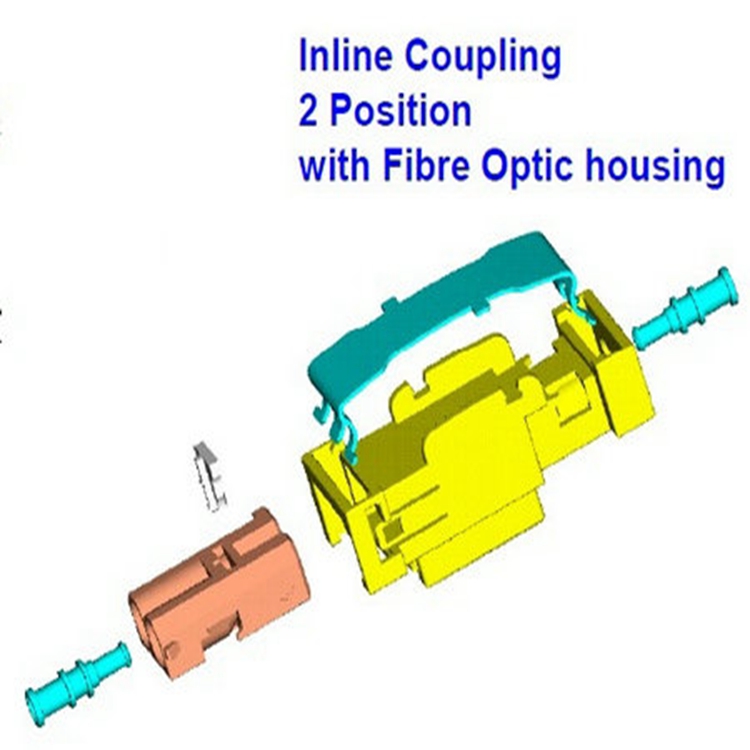

Adopt self developed MOST plastic optical fiber connector for automobile, with compact structure, anti pull, waterproof, high temperature resistant design, low insertion loss, high precision coupling, can ensure data transmission, accurate polishing and grinding, wire is made of PE, PVC and other materials, anti wear, anti corrosion, anti heavy pressure, high and low temperature non conductive, no electromagnetic interference radiation, the outside of the wire is made of PE, PVC and other materials, anti wear, anti corrosion, anti heavy pressure, high and low temperature non conductive, no electromagnetic interference radiation. The assembly process, which is specially developed and designed for automotive multimedia systems, has been widely used in European and Japanese brand cars.

MOST-1355752

Performance specifications:

MOST-1355752

Core material diameter: Φ1.0

Core material: imported Japanese optical fiber

Finished diameter: Φ2.3

Outer cover material: CPE, PE, PVC

Cover color: orange, other colors can be customized

Attenuation: less than 180dB / km
