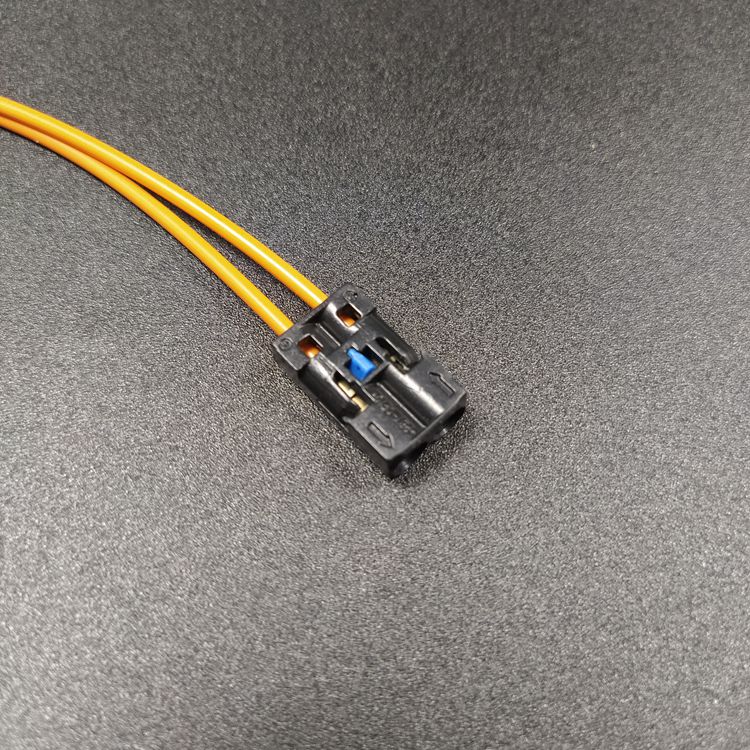

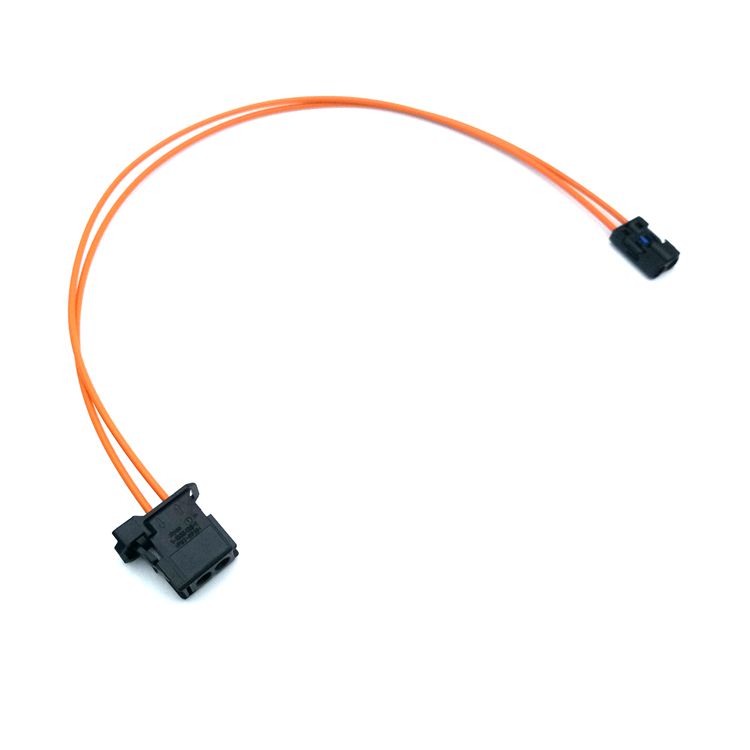

MOST Plastic Optical Fiber Cable Automotive Optical Fiber Jumper Audi Automotive Optical Fiber Cable

Features:

Light weight, save car wiring space

Data is not affected by electromagnetic interference

High-speed data transmission, large data volume, MOST25 standard

Data rate is 25Mbps, MOST150 standard data

150Mbps

Can transmit synchronous data, asynchronous data and control data

Support Plug and Play (Plugand Play) mechanism

Multimedia devices connected

 MOST plastic optical fiber

Scope of application:

Digital broadcasting

Video display

Interactive Security System

GPS navigation system

MOST plastic optical fiber

product features:

MOST plastic optical fiber

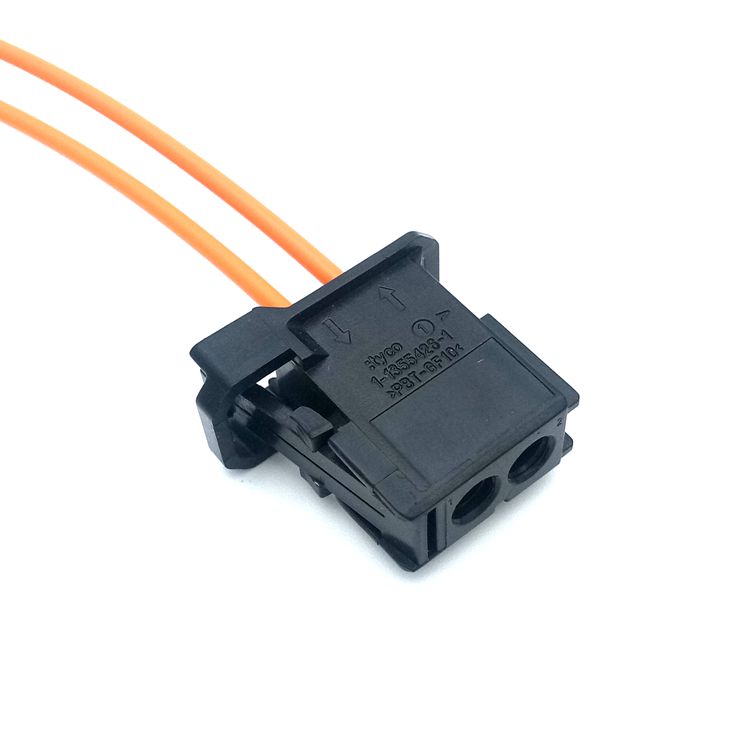

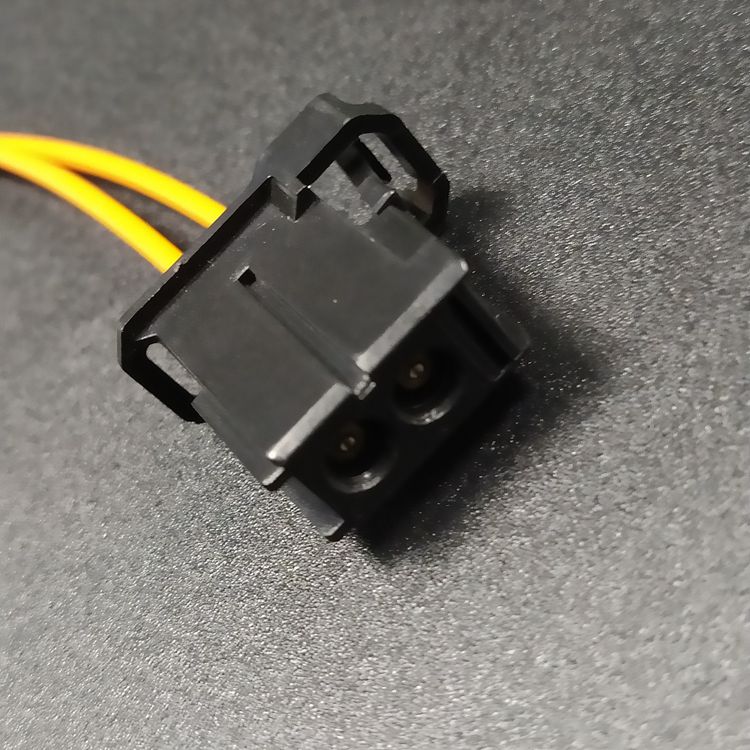

It adopts independent MOST plastic optical fiber connector developed and produced by itself, with bayonet design, compact structure, tensile, waterproof, high temperature design, low insertion loss, high precision coupling, which can ensure data transmission. The exterior is made of PE, PVC and other materials, which are anti-wear, anti-corrosion, anti-gravity, high and low temperature non-conductive, and no electromagnetic interference radiation. It is designed and developed for automotive multimedia systems.

MOST plastic optical fiber

MOST plastic optical fiber

Performance specifications:

Core material diameter: Φ1.0

Core material: imported Japanese optical fiber

Finished product diameter: Φ2.3

Outer cover material: CPE, PE, PVC

Cover color: orange, other colors can be customized

Attenuation: less than 180dB/km

Working temperature: -55℃-+85℃

Standard length: 1000mm, any size can be customized 0-100m

Compliance with standards: European ROHS certification, CE certification

MOST plastic optical fiber

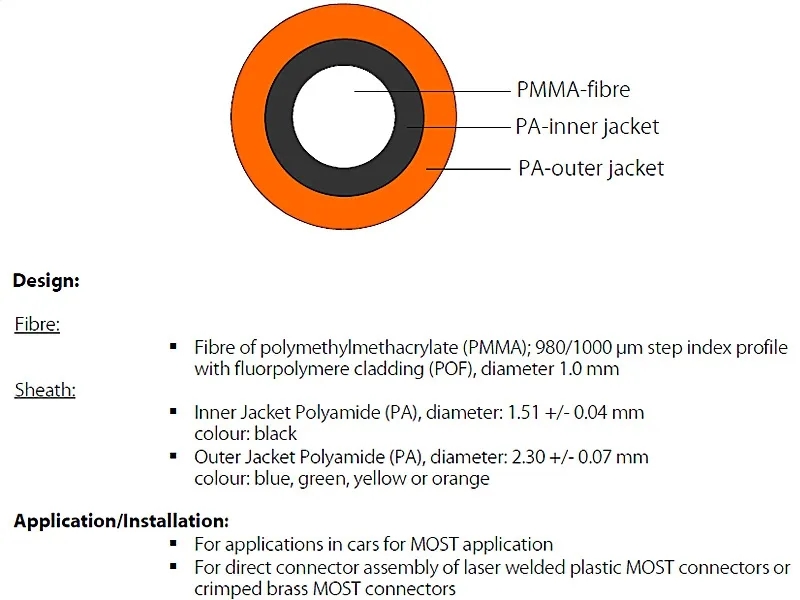

Fiber parameters:
