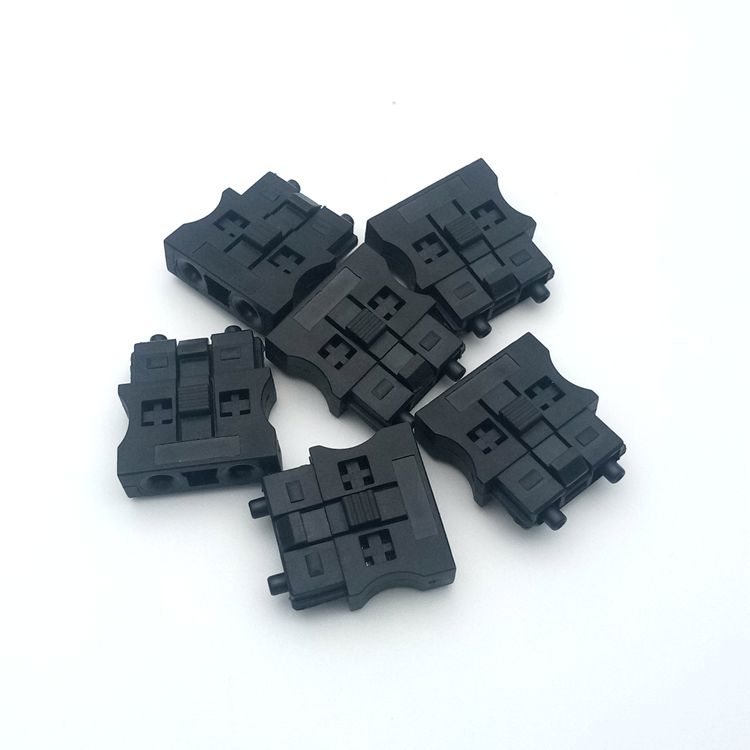

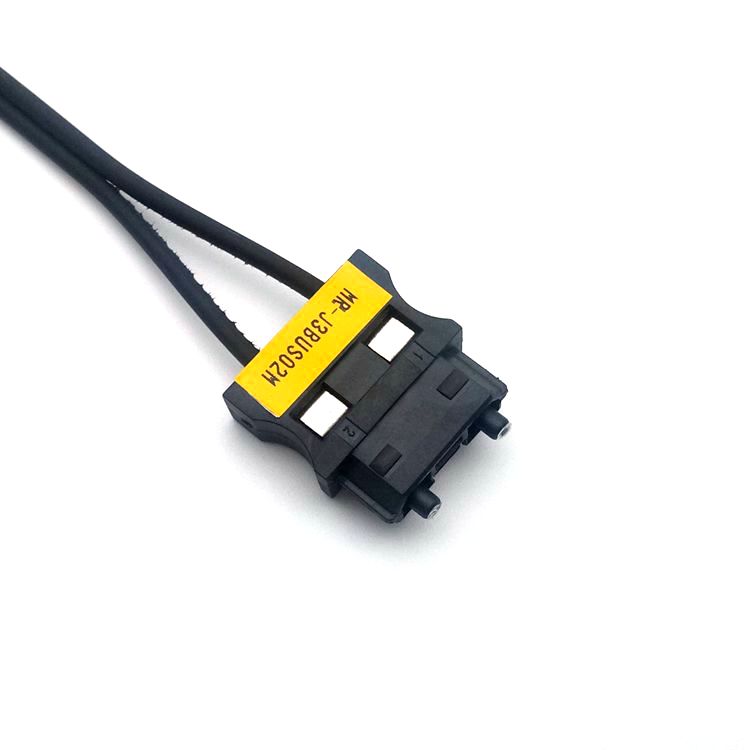

MR-J3BUS optical fiber connector for Mitsubishi AC servo 1123445-1 connector motor and drive

Application

Mitsubishi MITSUBISHI SSCNET III cable is suitable for MR-J3 \ J4-B servo amplifier

MR-J4W2-B \ MR-J4W3-B multi-axis integrated servo amplifier

Servo CN1A is used to connect servo controller or front axis servo amplifier

Servo CN1B is used to connect the rear axle of the servo amplifier

Optical fiber connector specifications and models:

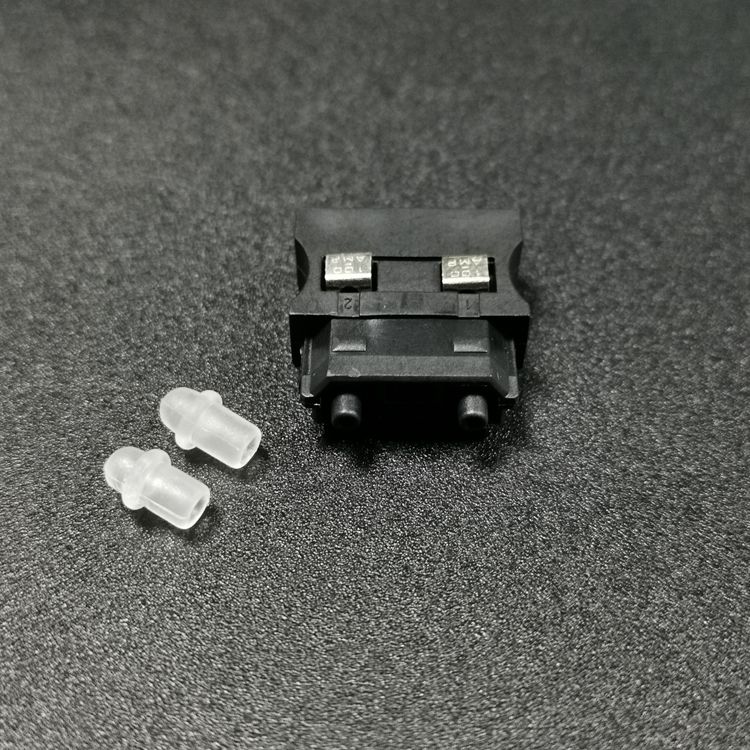

1123445-1
TOCP200Q
CF2071

Fiber optic cable specifications and models:
1.0 * 2.2 * 4.4mm  double-core side by side plastic optical fiber Fiber core diameter: 1mm
1.0 * 2.2 * 4.4 * 6.0mm dual core plastic optical fiber Fiber core diameter: 1mm
1.0 * 2.2 * 4.4 * 6.0mm double core with Kevlar reinforced plastic optical fiber Fiber core diameter: 1mm
HPCF200 / 230um special optical fiber
GOF multimode glass fiber

Applicable optical fiber module (female base) specifications and models:
QJ71GP21-SX
QJ71GP21X-SX

Specifications and models of optical fiber jumpers with connectors:

Mitsubishi CC-LINK IE module cable QG-G50-2C-50M-B-LL (length can be customized)

CC-LINK IE communication cable for Mitsubishi Q series QJ71GP21-SX, QJ71GP21X-SX

Interface type LC / LC fiber harness has small loss characteristics, and any length can be customized between 3 and 500 meters

QG-G50-2C-3M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-5M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-10M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-15M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-20M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-25M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-30M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-50M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-80M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-100M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-160M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
