Jinzhi provides SMI LAN series plastic optical fiber products. Plastic optical fiber has been used in industrial control for more than 40 years

PRODUCTSPlastic fiber optic cables and connectors for lighting, industrial, and medical applications

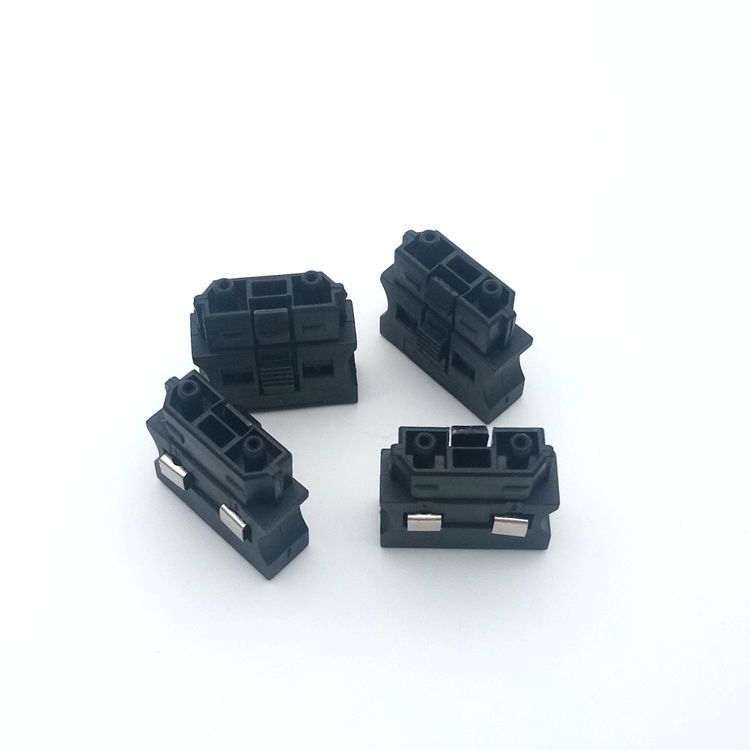

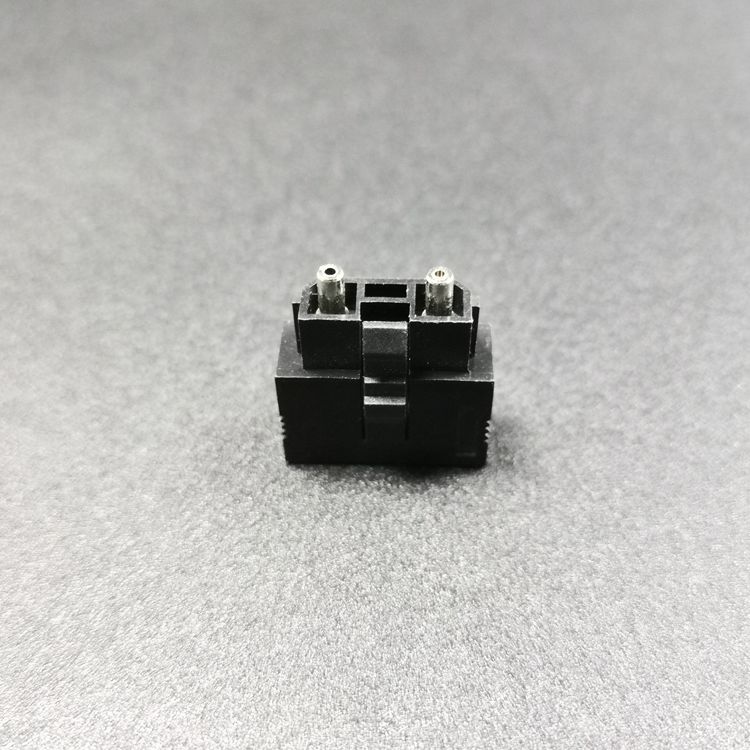

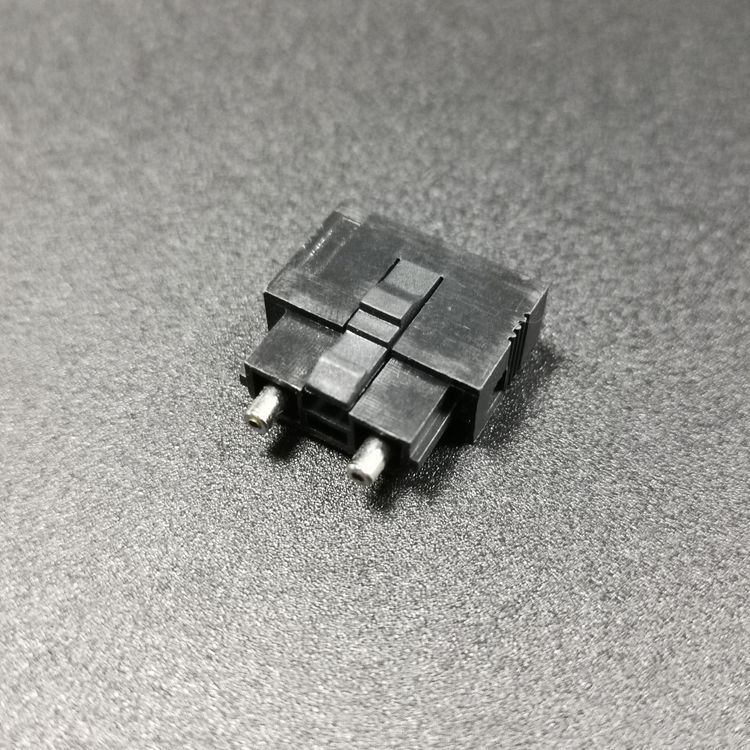

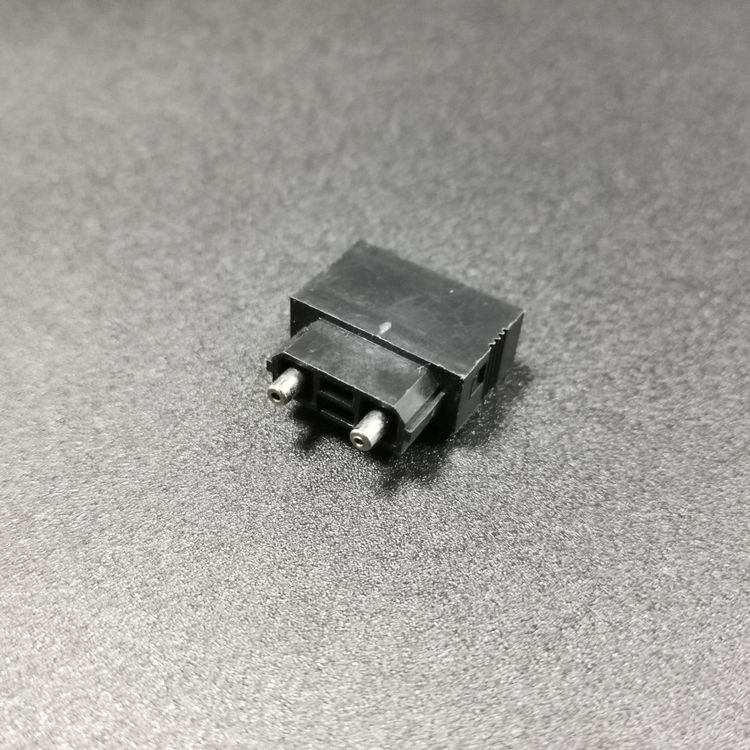

Mitsubishi Servo J3\J4-B MR-J3BUS_M F07 conneector

Product Code：F07 Servo Fiber Connector

F07 Servo Fiber Connector:Mitsubishi MITSUBISHI SSCNET III cable is suitable for MR-J3 \ J4-B servo amplifier MR-J4W2-B \ MR-J4W3-B multi-axis integrated servo amplifier

Advisory

  • F07 Servo Fiber Connector

Mitsubishi Servo J3\J4-B MR-J3BUS_M F07 Servo Fiber Connector




Product Description

Jinzhi Optoelectronics provides servo plastic optical fiber cables, connectors, and finished jumpers with connectors. If customers want to process their own, Jinzhi can provide technical support; Mitsubishi servo plastic optical fiber cables (MR-J3 \ J4- B, G380, G396, CNC), imported and domestic connectors, imported connectors have brand value guarantee, domestic substitute products have more advantages in price, and the quality is also very stable. The use of imported Japanese optical fiber can ensure stable data transmission; Precision grinding and polishing, full factory inspection, better performance, excellent quality, and assembly technology that exceeds industry standards have been widely used in Mitsubishi servo, FANUC servo CNC, and automation equipment.F07 conneector


F07 conneector


Optical fiber connector specifications and models:
1123445-1
TOCP200Q
CF2071



Fiber optic cable specifications and models:
1.0 * 2.2 * 4.4mm  double-core side by side plastic optical fiber Fiber core diameter: 1mm
1.0 * 2.2 * 4.4 * 6.0mm dual core plastic optical fiber Fiber core diameter: 1mm
1.0 * 2.2 * 4.4 * 6.0mm double core with Kevlar reinforced plastic optical fiber Fiber core diameter: 1mm
HPCF200 / 230um special optical fiber
GOF multimode glass fiberF07 conneector



Applicable optical fiber module (female base) specifications and models:
QJ71GP21-SX
QJ71GP21X-SX


Specifications and models of optical fiber jumpers with connectors:

J4 · J3 series SSCNETⅢ fiber optic jumper model




Mitsubishi CC-LINK IE module cable QG-G50-2C-50M-B-LL (length can be customized)

CC-LINK IE communication cable for Mitsubishi Q series QJ71GP21-SX, QJ71GP21X-SX

Interface type LC / LC fiber harness has small loss characteristics, and any length can be customized between 3 and 500 meters





QG-G50-2C-3M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-5M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-10M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-15M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-20M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-25M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-30M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-50M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-80M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-100M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-160M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
