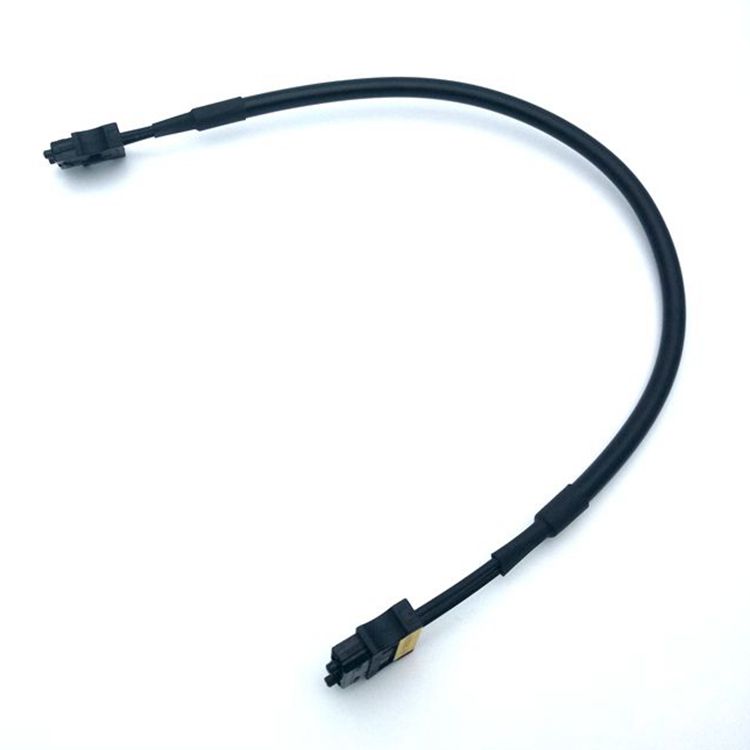

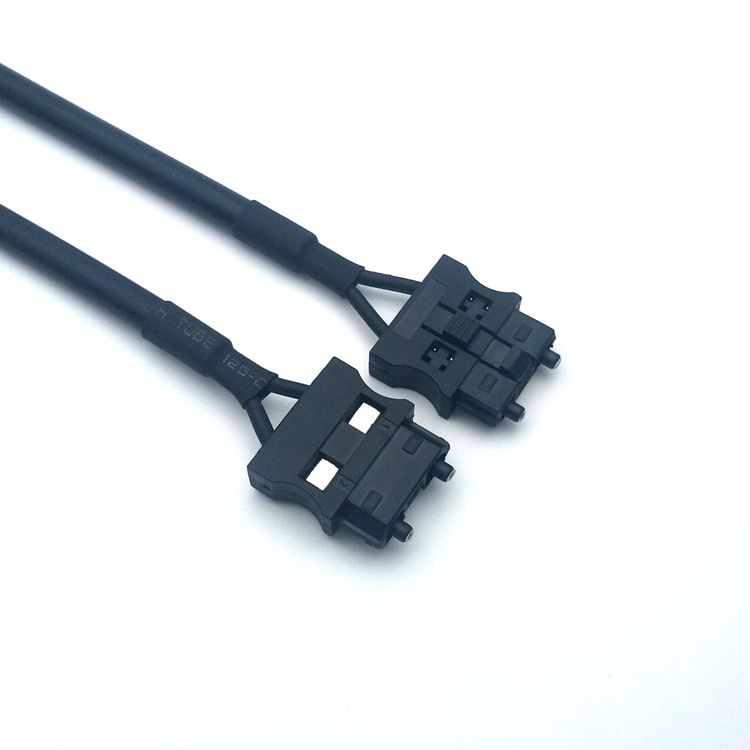

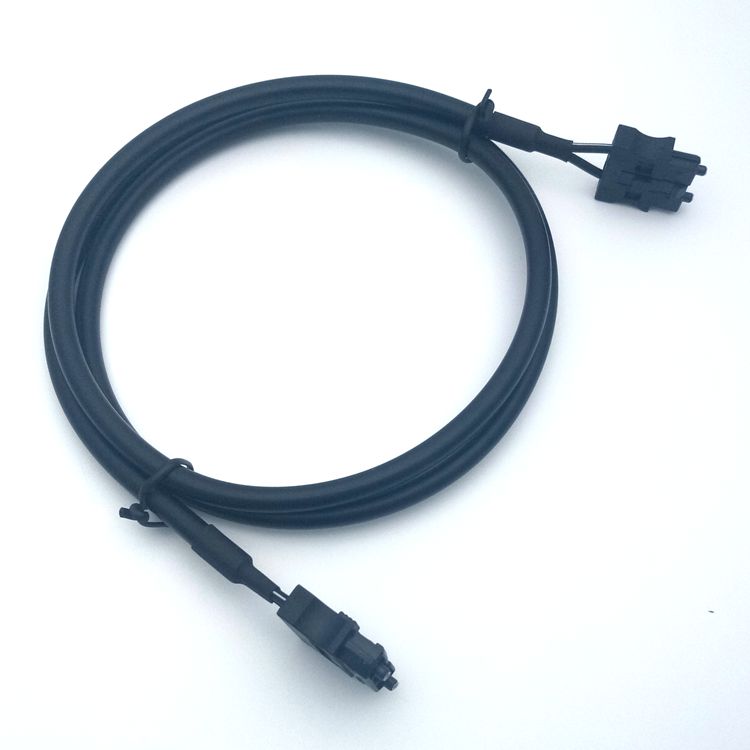

Mitsubishi Servo Motor Mitsubishi Electric J3 J4 Series SSCNETIII Optical Fiber MR-J3BUS03M-A

Product Code：

MR-J3BUS03M-A :Mitsubishi MITSUBISHI SSCNET III cable is suitable for MR-J3 \ J4-B servo amplifier MR-J4W2-B \ MR-J4W3-B multi-axis integrated servo amplifier Servo CN1A is used to connect servo controller

Advisory

  • MR-J3BUS03M-A

Mitsubishi  Servo  Motor Mitsubishi Electric J3 J4 Series SSCNETIII Optical Fiber MR-J3BUS03M-A



Product Description

Jinzhi Optoelectronics provides servo plastic optical fiber cables, connectors, and finished jumpers with connectors. If customers want to process their own, Jinzhi can provide technical support; Mitsubishi servo plastic optical fiber cables (MR-J3 \ J4- B, G380, G396, CNC), imported and domestic connectors, imported connectors have brand value guarantee, domestic substitute products have more advantages in price, and the quality is also very stable. The use of imported Japanese optical fiber can ensure stable data transmission; Precision grinding and polishing, full factory inspection, better performance, excellent quality, and assembly technology that exceeds industry standards have been widely used in Mitsubishi servo, FANUC servo CNC, and automation equipment.MR-J3BUS03M-A

Application

Mitsubishi MITSUBISHI SSCNET III cable is suitable for MR-J3 \ J4-B servo amplifier

MR-J4W2-B \ MR-J4W3-B multi-axis integrated servo amplifier

Servo CN1A is used to connect servo controller or front axis servo amplifier

Servo CN1B is used to connect the rear axle of the servo amplifier

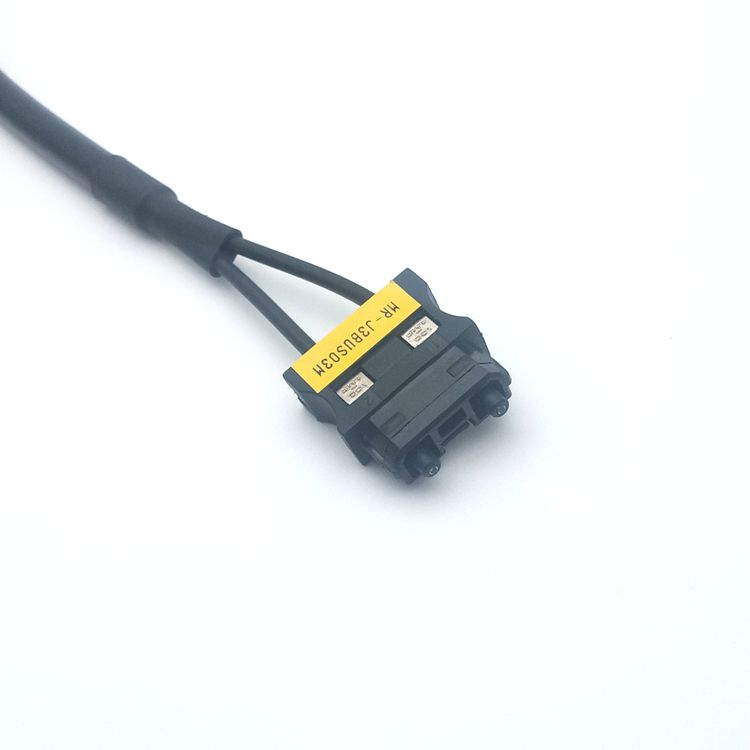

 MR-J3BUS03M-A


Fiber optic cable specifications and models:
1.0 * 2.2 * 4.4mm  double-core side by side plastic optical fiber Fiber core diameter: 1mm
1.0 * 2.2 * 4.4 * 6.0mm dual core plastic optical fiber Fiber core diameter: 1mm
1.0 * 2.2 * 4.4 * 6.0mm double core with Kevlar reinforced plastic optical fiber Fiber core diameter: 1mm
HPCF200 / 230um special optical fiber
GOF multimode glass fiber



Applicable optical fiber module (female base) specifications and models:
QJ71GP21-SX
QJ71GP21X-SX



Specifications and models of optical fiber jumpers with connectors:

J4 · J3 series SSCNETⅢ fiber optic jumper model

MR-J3BUS

MR-J3BUS015M

MR-J3BUS1M

MR-J3BUS1.5M

MR-J3BUS02M

MR-J3BUS03M

MR-J3BUS4M

MR-J3BUS05M

MR-J3BUS6M

MR-J3BUS7M

MR-J3BUS8M

MR-J3BUS9M

MR-J3BUS10M

MR-J3BUS5M-A

MR-J3BUS10M-A

MR-J3BUS15M-A

MR-J3BUS20M-A

MR-J3BUS25M-A

MR-J3BUS25M-B

MR-J3BUS30M-B

MR-J3BUS40M-B

J3 / J4MR-J3BUS_M



Mitsubishi CC-LINK IE module cable QG-G50-2C-50M-B-LL (length can be customized)

CC-LINK IE communication cable for Mitsubishi Q series QJ71GP21-SX, QJ71GP21X-SX

Interface type LC / LC fiber harness has small loss characteristics, and any length can be customized between 3 and 500 meters




QG-G50-2C-3M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-5M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-10M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-15M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-20M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-25M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-30M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-50M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-80M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-100M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)

QG-G50-2C-160M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
