1~20mm  Plastique Cable end glow fiber optic cable customizable

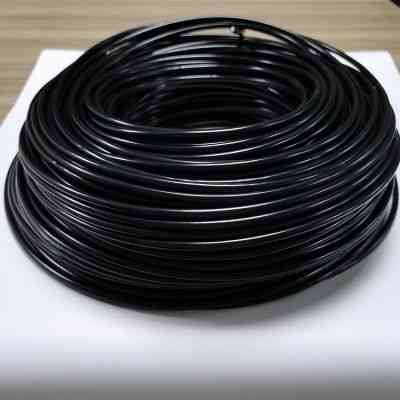

Black-skin soft optical fiber is a kind of light-guiding optical fiber material. It is composed of a transparent fluoropolymer core + black PVC. It does not emit light by itself, nor is it connected to a power source. It needs to be illuminated by LED light to emit light. The color of the LED light when it is irradiated, the light energy is transmitted from one end of the optical fiber to the other end using the principle of full emission of light to form an end-light effect.

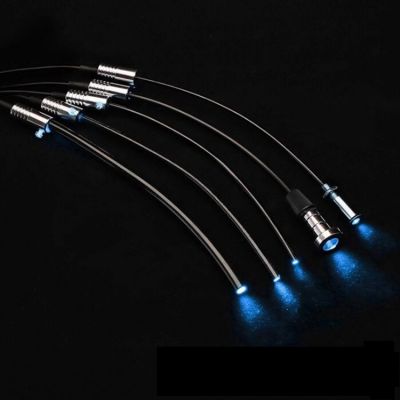

end glow fiber optic cable

Plastic optical cable:

Fiber Core Material:PMMA

Fiber Cladding Material:Fluorinated Polymer

Core refractive index:1.491

Cladding refractive index:1.363

Numerical Aperture:0.5

Minimum Bend Radius:10mm

end glow fiber optic cable

Features:

Tail-emitting fiber with large bending radius

Cold light source, long life, no UV, photoelectric separation

Light guide indicates point-to-point transmission of light with low attenuation

end glow fiber optic cable

Application range:

For device light guide indication

Electronics, electrical and electronics

Machinery and toys

Crafts, medical equipment

Lighting, display backlight, etc.
