Arc protection device with induction and fluorescent

What is an arc flash?

Human safety is critical to utilities and industries, including oil, gas, water, wastewater, and metals and mining.

Arc flash is a hazardous situation with a release of energy.

The energy from an arc flash event can cause injury.

How is the arc generated?

Arc flashes occur when the insulation or air separation between energized components within a circuit is compromised. Arc flash events can be caused by a number of factors, such as a two-phase short circuit, which can cause phase-to-phase faults. Common examples of causing phase-to-phase failures include dropped tools, accidental contact by maintenance personnel, build-up of corrosion or conductive dust on conductors, and the presence of pests, such as rats, or snakes, that come into contact with energies.

Arc protection device

Danger of Arc Flash

Arc flash events can result in dangerous and potentially lethal heat, ultraviolet radiation, explosion pressure, flying shrapnel, and deafening sound waves.

How to solve such problems?

Arc protection at the speed of light:

Protect people and equipment

• Technology and overcurrent detection

• To reduce the likelihood of injury

• Reduces arc incident energy levels by up to 88%

• To increase safety and minimize equipment damage

• Safely detect arc flash by using a combination of light sensors

Arc protection solutions

Bare fiber sensors detect light from arc flashes over the entire length of the fiber loop. This type of sensor is used for large areas,

Easy-to-install point sensors such as busbars detect light from arcs. This type of sensor is used in areas such as closed circuit breaker rooms.

 Arc protection device

Shenzhen Jinzhi Optoelectronics Technology Co., Ltd. provides induction series products for arc protection solutions

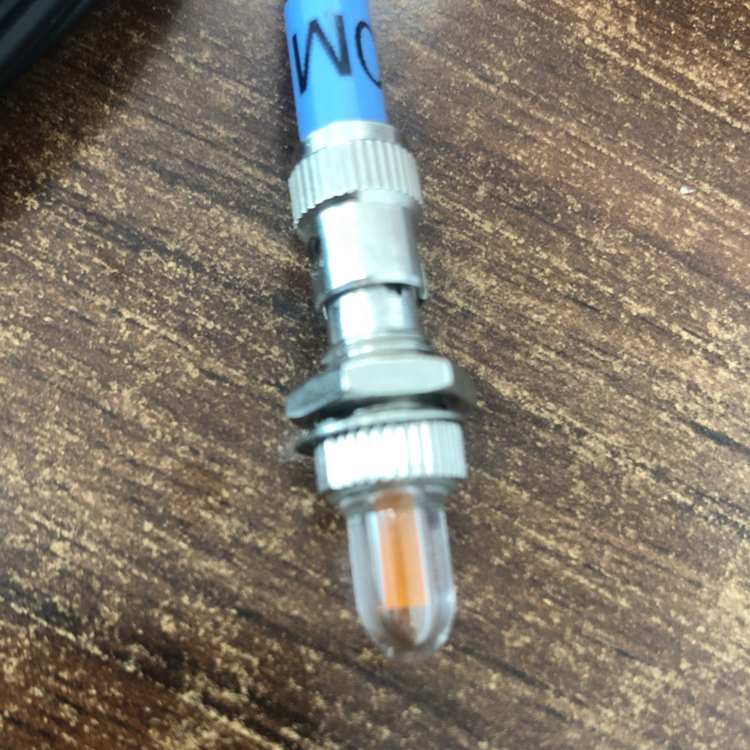

1. Jinzhi provides: light detection point sensor

Model：KINZ-CG01&KINZ-CG02

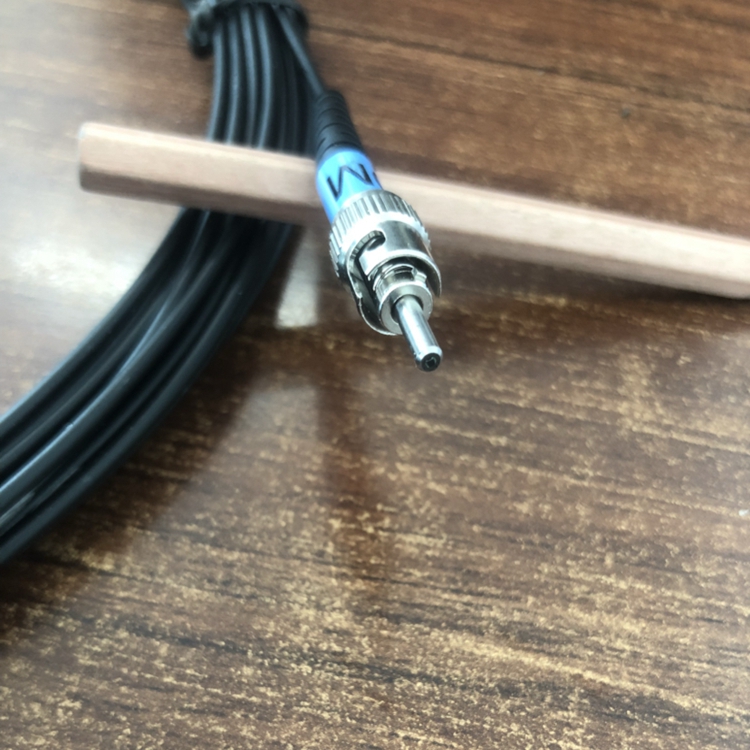

Plastic Fiber Optic Connectors for Point Sensors

Describe:

The light that meets the point sensor is captured and fed into a plastic optical fiber (POF). The self-supervision function is achieved through the built-in coupling between the two fibers.

For connecting duplex POF cables to point sensors. The special sensor design based on POF allows system engineers to avoid any galvanic contact between the arc flash area and the detection electronics.

 Arc protection device

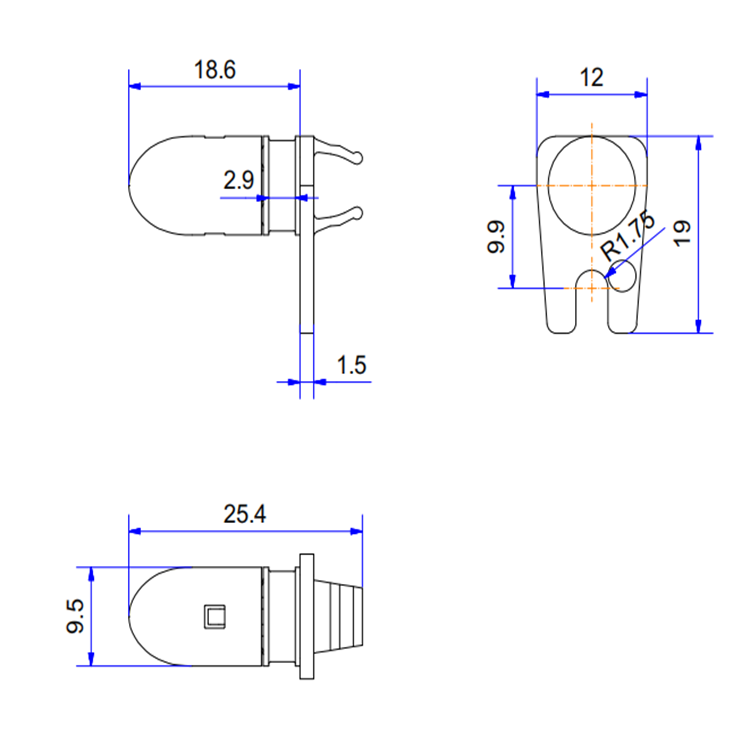

Sketch:

Dimensions
