AFBR-S10PS010Z Point Sensor for Light Detection

What is an arc flash?

Human safety is critical to utilities and industries, including oil, gas, water, wastewater, and metals and mining.

Arc flash is a hazardous situation with a release of energy.

The energy from an arc flash event can cause injury.

How is the arc generated?

Arc flashes occur when the insulation or air separation between energized components within a circuit is compromised. Arc flash events can be caused by a number of factors, such as a two-phase short circuit, which can cause phase-to-phase faults. Common examples of causing phase-to-phase failures include dropped tools, accidental contact by maintenance personnel, build-up of corrosion or conductive dust on conductors, and the presence of pests, such as rats, or snakes, that come into contact with energies.

Danger of Arc Flash

Arc flash events can result in dangerous and potentially lethal heat, ultraviolet radiation, explosion pressure, flying shrapnel, and deafening sound waves.

How to solve such problems?

Arc protection at the speed of light:

Protect people and equipment

• Technology and overcurrent detection

• To reduce the likelihood of injury

• Reduces arc incident energy levels by up to 88%

• To increase safety and minimize equipment damage

• Safely detect arc flash by using a combination of light sensors

• Install into new systems or retrofit into existing equipment for everyone

• Detect arc events and send trip signals in as little as 2 ms

Benefits of Arc Flash Protection

1. High speed trip:

Relays reduce the risk of arcing by reducing overall troubleshooting time.

2. Reduce accident energy:

The faster the arc flash event disappears, the lower the incident energy. The relay detects an arc flash hazard and sends a trip signal to the circuit breaker within 2 ms.

3. Improve security:

Arc-flash detection reduces fault clearing time, reduces arc-flash hazards, and improves safety. To verify arc-flash protection performance, a series of tests were conducted in a high-current laboratory. During these tests, the arc flash

Using technology, incident energy levels were reduced by 88%.

4. Reduce damage to switchgear:

With Arc Flash Hazard Protection, equipment damage can be minimized during an arc flash event, allowing affected equipment to be restored faster and at a lower cost. In addition, the availability of the power system is maximized.

5. Maintain selective coordination:

Arc flash events trigger immediate response while coordinating with external protection for downstream faults

6. Stay outside the danger zone:

Get metering, event and maintenance information remotely from the relay via Ethernet or serial communication to maintain a safe distance. An optional delay circuit breaker trips or closes at the push of a button, allowing personnel to move to a safe distance.

Above is the switchgear contactor after a 5 kV arc flash event, during which conventional overcurrent protection was applied. Damage requires replacement of contactors, fuse clips, copper busses, cables, control wires, disconnects and hardware.

Shown here (before any cleanup is done) is the inside of a switchgear protected by SEL light sensing and overcurrent protection during a 6.6 kV arc flash event. Damage is limited to arcing on the cable termination bolts.

Arc protection solutions

Bare fiber sensors detect light from arc flashes over the entire length of the fiber loop. This type of sensor is used for large areas,

Easy-to-install point sensors such as busbars detect light from arcs. This type of sensor is used in areas such as closed circuit breaker rooms.

Shenzhen Jinzhi Optoelectronics Technology Co., Ltd. provides induction series products for arc protection solutions

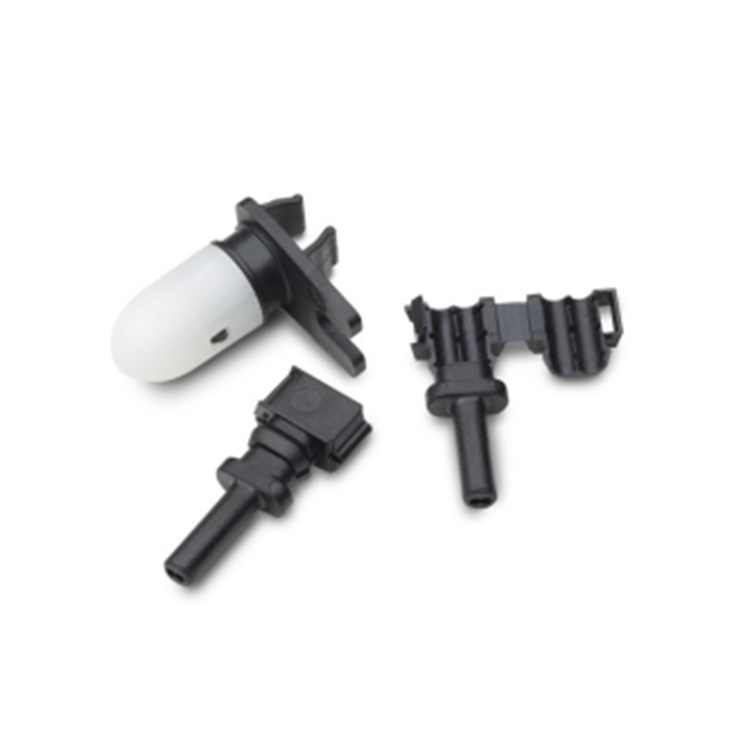

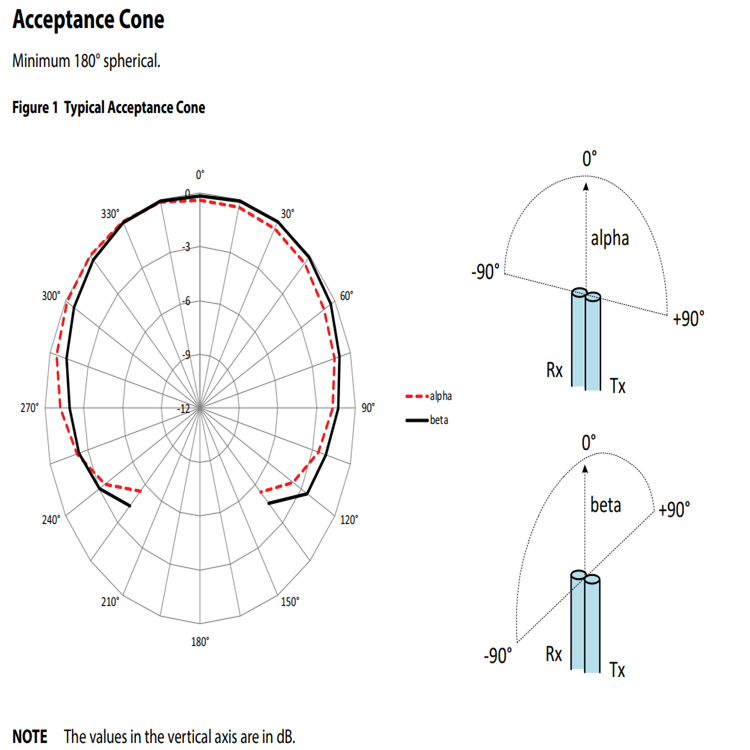

1. Jinzhi provides: light detection point sensor

Model：AFBR-S10PS010Z and AFBR-S10PS011Z

Plastic Fiber Optic Connectors for Point Sensors

                        Welcome to browse our company's solutions related to industrial applications.

                         If you need further understanding of  technical knowledge and product information,

                                      the contact information is as follows: Toll free: 400-160-8187

                                       Email:  sales@kinz-pof.com Website: www.kinz-pof .com
