Magnetic line is used in medical & wearable equipment and other fields

1. What is a magnetic attraction line?

The magnetic charging cable refers to the charging cable that achieves the charging effect by connecting the male and female magnets to the suction method.

Magnetic data cable is also called magnetic charging cable, magnet charging cable, magnetic charging cable, magnetic charging cable, magnetic data cable, etc. Mainly used in smart wear, 3C digital, smart home, vehicle navigation detection, medical equipment and other electronic products to achieve charging, signal transmission and other aspects. In fact, the difference between the magnetic data cable and the ordinary data cable is not big. The magnetic data cable is more convenient to use when driving, and the transmission speed is similar to that of the ordinary data cable.

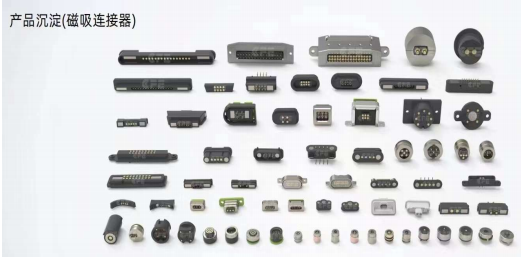

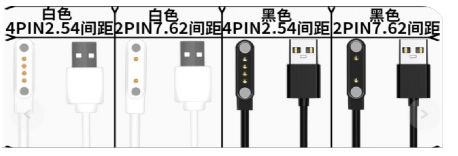

Product Precipitation (Magnetic Connector)

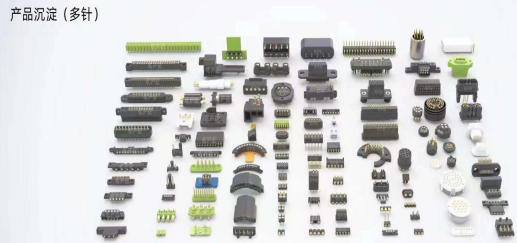

Product precipitation (multi-needle)

2. the characteristics of the magnetic charging cable:

Relying on the magnetic attraction of magnets, the traditional data cable connector and the wire body are separated, and the two are automatically attracted within a certain distance by magnetism, so the magnetic attraction data cable is called a magnetic attraction cable, a magnetic attraction data cable, and a magnetic attraction charging cable. In this way, the data cable can be inserted and unplugged with one hand, and in actual use, the magnetic charging cable is safer than the ordinary data cable.

1. The interface is widely applicable to mainstream models;

2. Fast transmission speed, perfectly compatible with mobile phone data transmission;

3. Easy to use, very suitable for driving, sleeping and other life scenarios;

4. The charging speed is fast, leading the similar magnetic suction line products in the market;

5. Slim size and miniaturization are widely applicable. Different from the traditional data cable interface common in life, the new magnetic charging cable interface has been reduced in size. Even if the mobile phone is used with a mobile phone case, the magnetic charging cable is also suitable for 90 % of the mobile phone cover can be used directly without removing the cover, so it is suitable for use in increasingly miniaturized electronic products and equipment, and can withstand more than 50,000 repeated plugging and unplugging times;

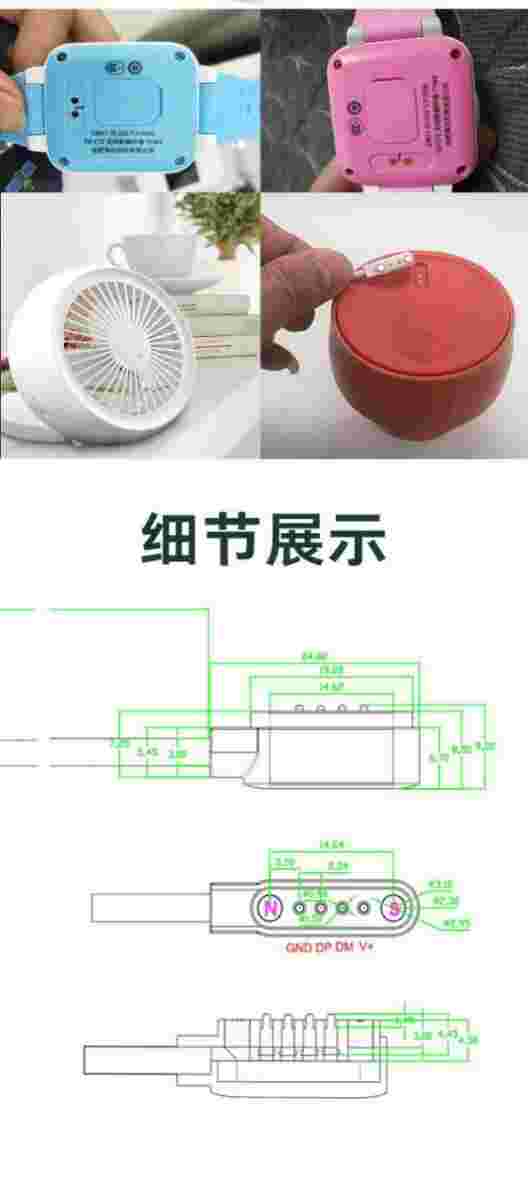

3.the application of magnetic lines:

Mainly used in smart bracelets, smart watches, smart wear, 3C digital, smart home, vehicle navigation detection, medical equipment and other electronic products to achieve charging, signal transmission and other aspects.

4. What is pogopin?

Pogo pin is a precision connector used in electronic products such as mobile phones. It is widely used in semiconductor equipment for connection. It has different appearances according to different applications, but as a whole, there is a precision spring structure inside the pogo pin. The surface of the product is generally gold-plated, and the spring is also gold-plated when the process requires. The thimble realizes electricity or conduction, most of which are in contact with the copper wall through the oblique downward direction, and the spring bears a small amount, so the inner wall of the copper sleeve is required to be smooth. Electrical characteristics Will actively find the path with the smallest resistance value to conduct current

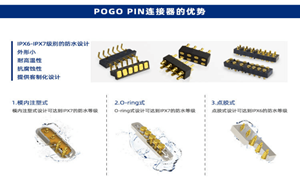

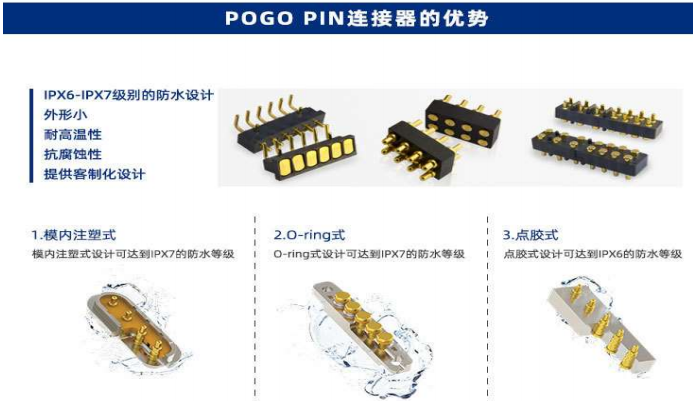

5.pogopin features:

1. The pogopin connector has a large amount of compression, which can reduce the pressure of the spring.

2.the size of the pogopin connector is relatively small, which can save space better, and the contacts are more accurate and stable.

3. The service life of pogopin connectors is relatively long.

4. the appearance of the pogopin connector is more fashionable and atmospheric, and the thick texture is more suitable for those high-end electronic products.

5.pogopin connector manufacturers are faster in making POGOPIN connectors, and the cost is relatively low, and there is no need to open molds.

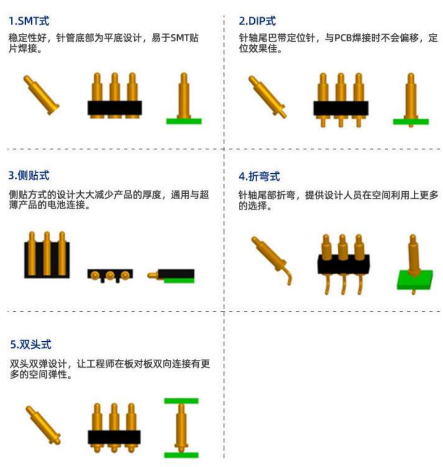

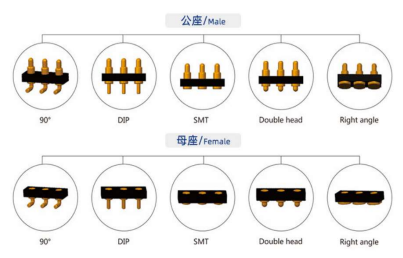

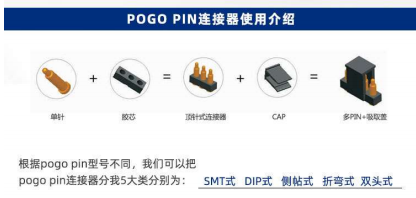

6. Classification of pogopin:

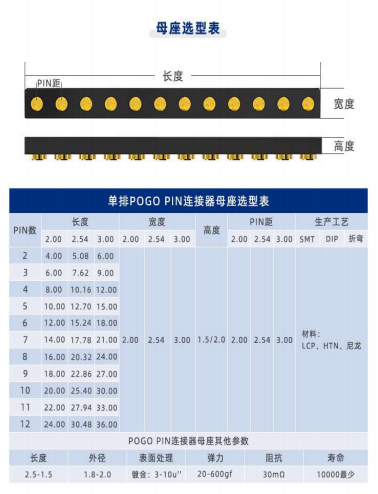

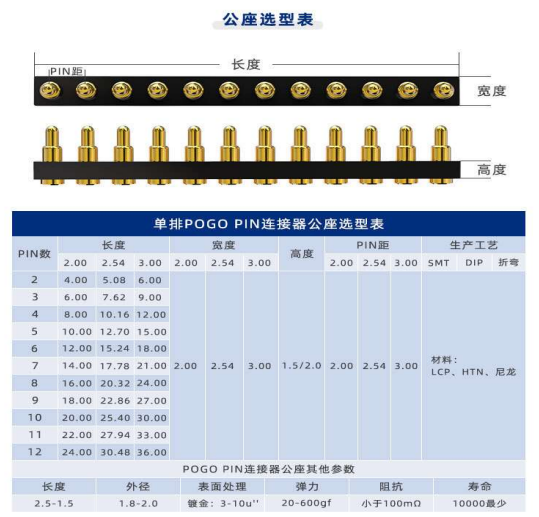

5. Selection table of pogopin:

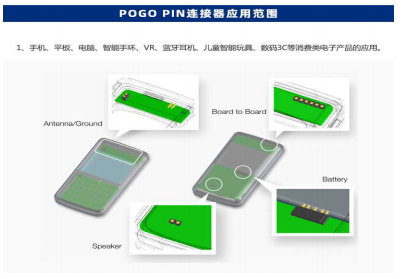

6. Pogopin (pogo pin) is a kind of precision electronic hardware, which is often used as a connection for current and signal transmission. There are many products that use pogopin in daily work and life, smart watch bracelet (charging port), magnetic charging cable (charging port), TWS earphone (the female end of the earphone and the pogopin male end of the charging compartment) , printers, projectors, etc. The pogopin mentioned daily refers to the male end, that is, the end with a spring, andthe corresponding female end is called a turning part, also called an electrode.

pogopin pogo pin:

Magnetic data cable：

                                                                  Welcome to our company's magnetic data cable application solutions.
