Medical Holmium Laser Fiber Applications

1. What is a holmium laser fiber?

The holmium laser uses yttrium aluminum garnet (YAG) as the activation medium,

doped with sensitizing ions chromium (Cr), energy-transmitting ions thulium (Tm),

and activating ion holmium (Ho) laser crystals (Cr:Tm:Ho:YAG) A new type of laser produced

by a pulsed solid-state laser device. It can be used in urology, ENT, dermatology, gynecology

and other departments. The laser surgery is a non-invasive or minimally invasive surgery,

and the patient's treatment pain is very small.

2. Features of holmium laser fiber:

1. Good hemostatic effect

2. The beam is easily absorbed by water and causes little damage to normal tissues

3. The thermal effect of the pulsed laser is only on the surface of the tissue

4. Cold action between pulses limits tissue damage

3. Application of holmium laser fiber:

1. Bladder tumor resection

2. Condyloma acuminatum laser surgery

3. ENT, dermatology surgery

4. Urology Laser Surgery - Urinary Lithotripsy Laser Surgery

5. Medical laser surgery for minimally invasive surgery such as gynecological laser surgery

4. Core diameter & specifications of holmium laser fiber:

Holmium laser fibers are usually distinguished according to the diameter of the fiber core, so holmium laser fibers

are divided into four categories: 200 microns, 400 microns, 600 microns, and 1000 microns.

Due to the different diameters of the holmium laser fiber, its flexibility and the functions it can carry are also different.

The specifications of medical holmium laser fiber are 275μm, 365μm, 550μm, 800μm, 1000um and other

specifications, which can meet the needs of different clinical treatments; the fiber adopts SMA-905

international standard interface, which is consistent with the vast majority of holmium laser treatment

equipment on the market. The holmium laser fiber has a strong and wear-resistant coating on the outside,

which is used to protect the fiber from being damaged and broken during use, and to ensure the durability of the product.

Specifications:

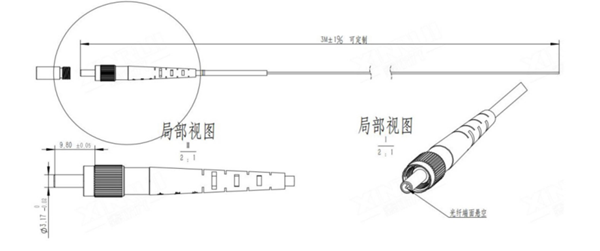

Fiber Structure Diagram

5. The main holmium laser fiber products provided by Shenzhen Jinzhi Optoelectronics are as follows:

     1.SMA905 high power connector

 2. Holmium laser fiber 275μm, 365μm, 550μm, 800μm, 1000μm

  3. Holmium laser fiber 275μm, 365μm, 550μm, 800μm, 1000μm finished jumper
