H-PCS Fiber Application Solutions

1.What is H-PCS fiber optic cable?

H-PCS is also called H-PCF/HCS/PCS

Suitable for offices and industrial areas, ultra-high-speed fiber optic cables for secure data transmission, available in POF (polymer optical fiber),

PCF (plastic clad optical fiber) or GOF (glass optical fiber), including single-mode, multi-mode and composite types, A highly flexible drag chain

application design is also available for interference-free data transmission at the speed of light.

2.Features of H-PCF/HPCS/HCS/PCS fiber optic cable

1. Reduce system cost:

The cost of optical modules for transmitting/receiving optical signals dominates the total cost of optical data transmission systems.

By reducing the cost of the optical modules, the total cost of the optical data transmission system can also be reduced

2. Crimp and cut connectors are suitable:

For traditional glue-and-polish optical connectors, the time-consuming gluing process and skill-requiring polishing

process make them difficult to terminate in the field, driving up costs

3. Lower attenuation even for short/medium distance cables:

In case of H-PCF: Quartz glass core - lower attenuation and long distance transmission (about 1 km)

possible - provides highly reliable system ensuring improved system margin

In case of POF: higher attenuation and long distance transmission impossible (about tens of meters)

3.H-PCF/HPCS/HCS/PCS fiber optic cable application

1. Surveillance camera system

H-PCF plays an important role in data transmission in video transmission system

2.FA(Factory Automation)-LAN

There are many line controllers and I/O units in a factory or factory.

Fiber optic data links should be used to monitor or control mass production systems.

H-PCF and crimp and split connectors offer the advantage of reducing the time and cost of installing and terminating fibers

3. Lighting control/management system

Active use of H-PCF cables in systems monitoring street light switches

4. Tram Control

H-PCF and SUMILINK DF-series in high power such as GTO or IGBT

Provides good isolation between the switching device and its gate control logic

Inverter motors for trams use this device

5. Fire protection system

For fire protection system networks in buildings and other facilities,

heat-resistant H-PCF cables are widely used

6. Display board at the train station

Display boards on train station platforms indicating destination and departure time are a very important source

 of information for people,

H-PCF plays an important role in achieving high reliability, reduced wiring, and long-distance data transmission

7. Electricity charge collection

Electric tolling on highways and car parks has been rolled out worldwide.

H-PCF plays an important role in the system, transferring data from network terminals

transmission to the antenna located on the communication door through which the vehicle passes,

to avoid errors due to lightning strikes or other electromagnetic influences

8. Flame monitoring system of thermal power station

In a boiler operation monitoring system of a thermal power station,

The H-PCF cable is used to collect the light emitted by the incineration,

This cable is suitable for easy field termination and excels at capturing large amounts of optical data

When used in conjunction with equipment that converts RS-232C/422/485 electrical signals to optical signals,

H-PCF cable for high reliability and long distance transmission

Shenzhen Jinzhi Optoelectronics Technology Co., Ltd. provides all fiber optic cables,

connectors, jumpers for H-PCF application solutions

1.Jinzhi provides H-PCF/HPCS/HCS/PCS fiber optic cable

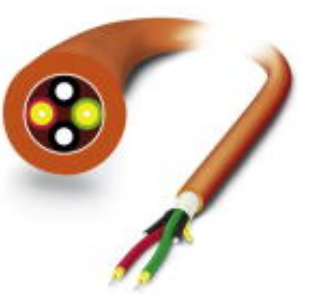

1)PCF DUPLEX FRNC-PUR indoor/outdoor

product description:

Flame Retardant Halogen Free Outer Sheath Separable Dual Core Polymer Clad Glass Optical Fiber Cable

and stress relief

application:

- Indoor/Outdoor; for fixed installations in harsh industrial environments

- Direct connector assembly

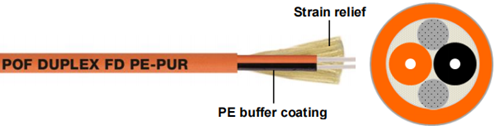

POF DUPLEX PE-PUR

POF DUPLEX FD PE-PUR

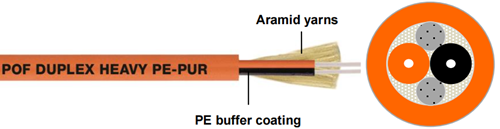

POF DUPLEX HEAVY PE-PUR

POF DUPLEX PE

PCF DUPLEX FRNC-PE Outdoor

PCF DUPLEX FRNC-PUR indoor

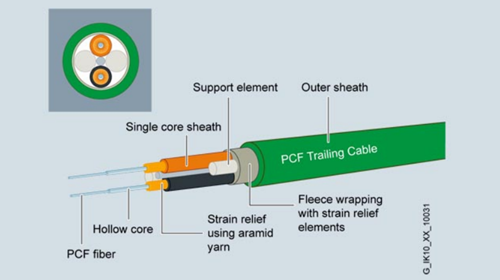

2)PCF Polymer Cladded Fiber

3).Optical Fibers and Cables

The fiber optic cable series utilizes high strength properties, fluoroacrylate coating technology,

 and at the same time improves bandwidth through graded index fiber design.

Most similar to OM-1 grade fiber optic cable with 62.5/200/230 GiHCS fiber optic

cable GiHCS cable supports fast and gigabit Ethernet, available in LSZH and OFNR

Riser fire safety ratings, including indoor and indoor/outdoor cable designs These

industrial cables are crimp & cleave compatible for quick and easy field connection in harsh environments.

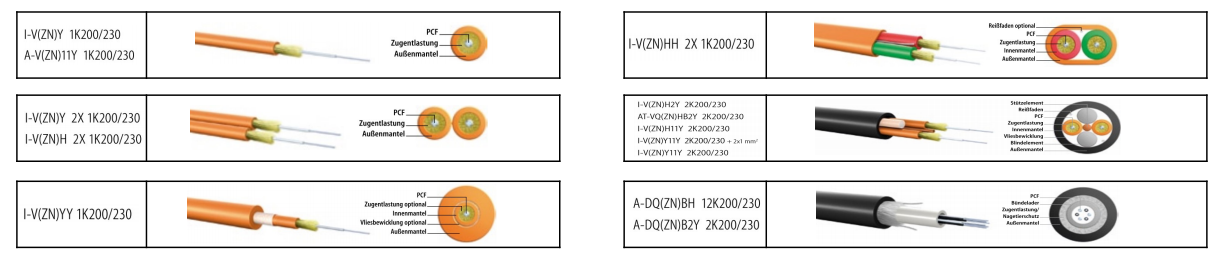

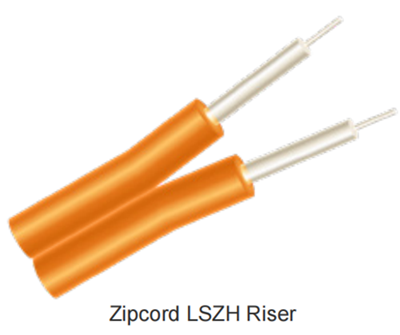

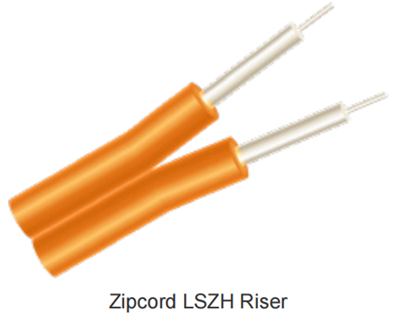

50/200/230 µm Zipcord Fiber Optic Cable

 62.5/200/230 µm Zipcord Fiber Optic Cable

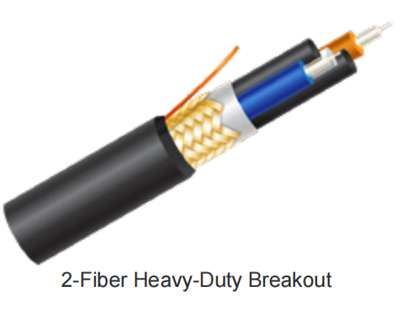

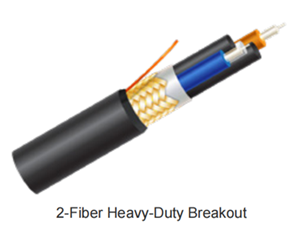

62.5/200/230 µm 2-Fiber Breakout Fiber Optic Cable

50/200/230 µm 2-Fiber Breakout Fiber Optic Cable

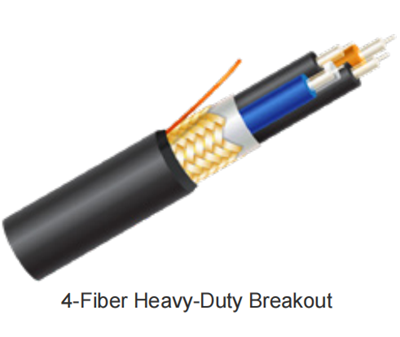

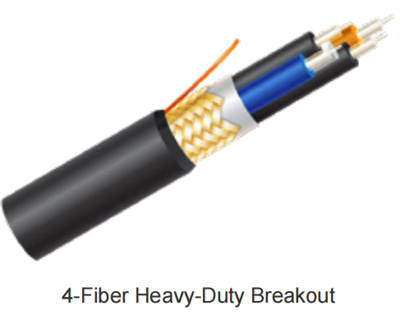

62.5/200/230 µm 4-Fiber Breakout Fiber Optic Cable

50/200/230 µm 4-Fiber Breakout Fiber Optic Cable

4).H-PCF (Hard Plastic Cladding Fiber)

5).FO pigtail

FOC-HCSO-1015/IP20/... - 2901557

Highly reinforced PCF round cable (both with IP20 head) for assembly and outdoor installation

 (with built-in moisture barrier and anti-rodent mesh).

All elements are made of highly elastic FRNC material. The cable has a specially reinforced

polyethylene outer jacket, resistant to ozone and UV rays.

FOC-HCS-RUGGED-1014/IP20/... - 2901555

Robust PC-mount electric for assembly (IP20 head) for installation in stationary systems and machines,

 aramid, cable clamp, with single element in FRNC material, halogen free, ozone and UV resistant,

With Polyurethane (PUR) Outer Sheath

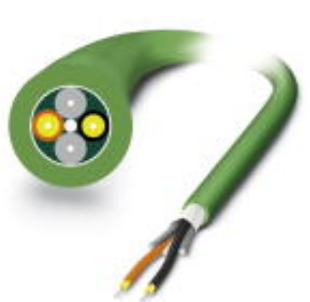

FOC-PN-HCS-1018/IP20/... - 2901556

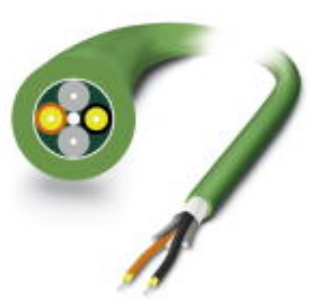

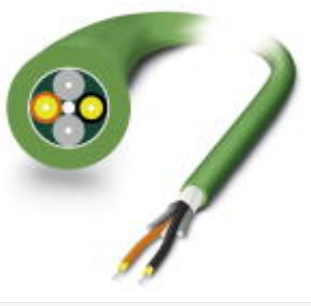

PCF PROFINET installation cable for assembly (IP20 head only) for installation

 in stationary systems and machines, with single element made of polyamide (PE) material,

halogen-free, ozone and UV resistant, with PVC outer sheath set

FL FOC PN-B-HCS-200/230 - 2313766

PROFINET PCF fiber optic, duplex 200 µm / 230 µm, for installation in stationary

 systems and machines, type B, PVC outer jacket, supplied by the meter

Goods without plug

PSM-LWL-HCSO-200/230 - 2799445

PROFINET PCF fiber optic cable, duplex 200/230 µm, for indoor installation, type B,

PVC outer jacket, supplied by the meter, without plug

FOC-HCS-1018B/... - 1408458

PCF cable, duplex 200 µm/230 µm, supplied by the meter, without pin connectors,

for installation in stationary systems and machines

PSM-LWL-HCS-RUGGED-200/230 - 2799885

PCF fiber, 2-core 200/230µm, supplied by the meter, without connectors, for outdoor installation

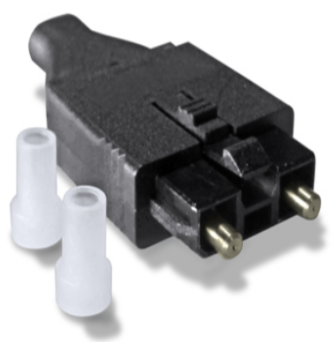

6).POF/PCF FOC Terminal Kit

Overview:

Compact, Rugged POF and PCF Fiber Optic Cables

Special version for easy assembly of SC RJ plugs on POF and PCF fiber optic cables

Use the included microscope to check the quality of the assembly.

Design

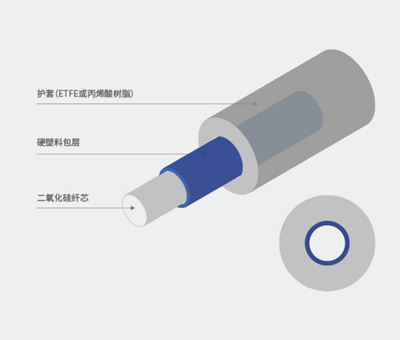

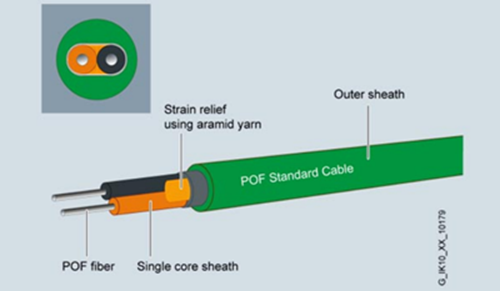

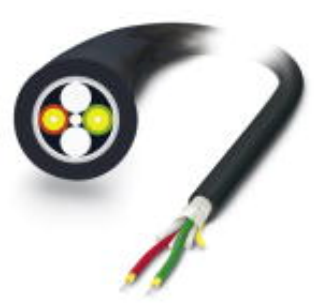

Cable Construction POF Plastic Optical Fiber

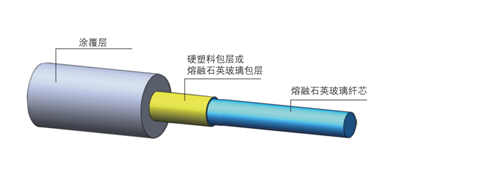

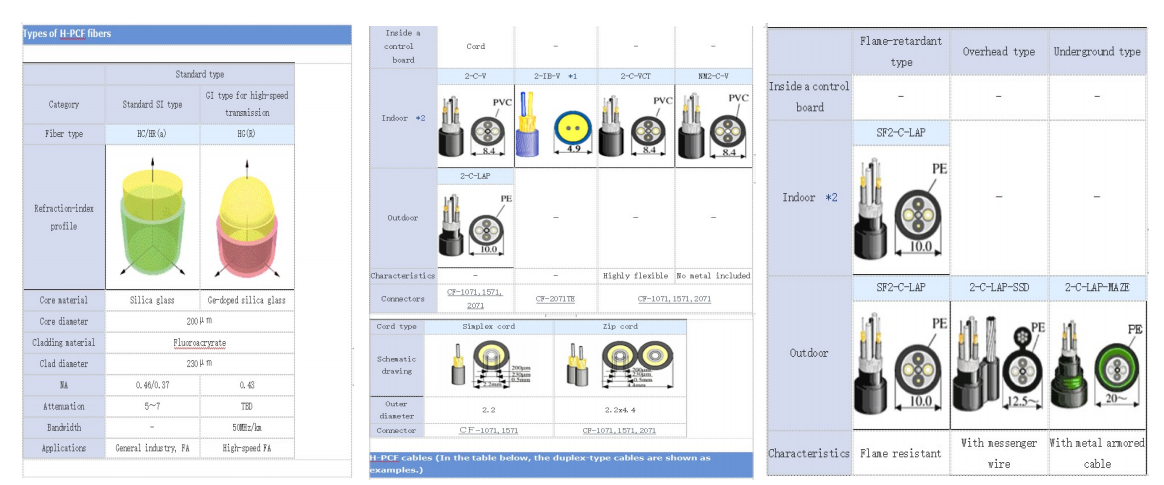

7).Plastic Clad Fiber Series (HPCF)

Sketch

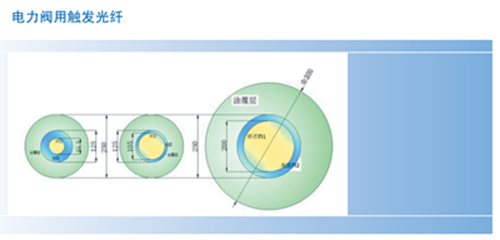

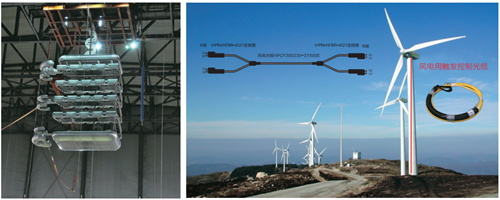

8).Trigger fiber for power valve

Sketch & Application

2.Jinzhi provides H-PCF/HPCS/HCS/PCS fiber optic connectors

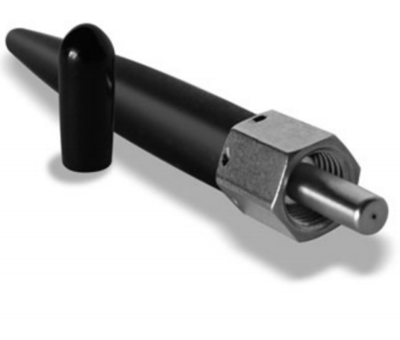

SMA 905 Connector for Step-Index 200/230 µm HCS

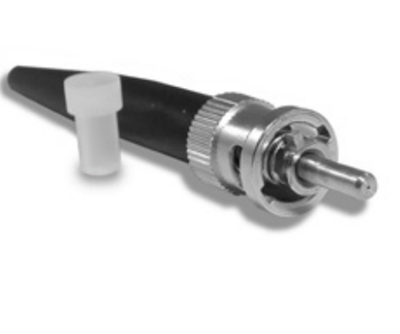

 ST Connector for 200/230 µm Step-Index HCS

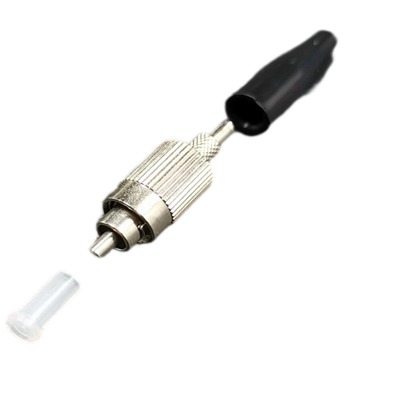

FC Connector for Step-Index 200/230 µm HCS

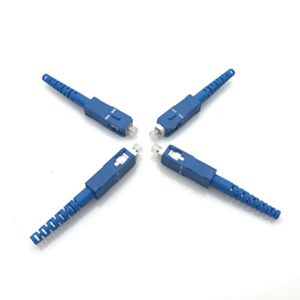

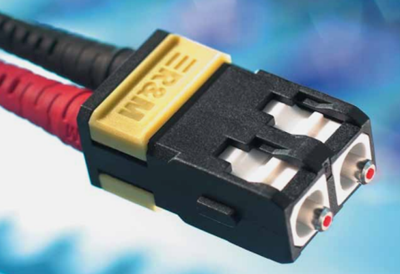

SC Connector for 200/230 µm Step-Index HPCS

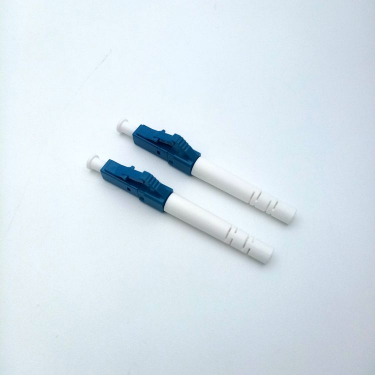

LC Connector for 200/230 µm Step-Index HPCS

SC Connector for 200/230 µm  duplex

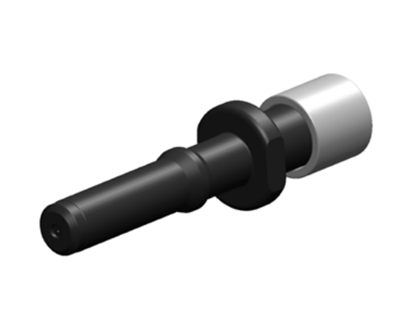

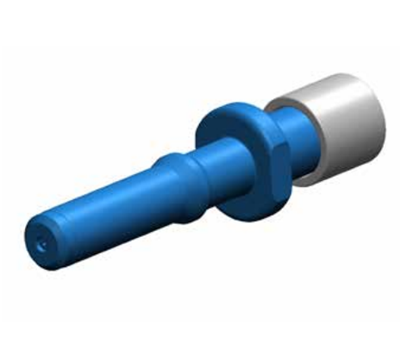

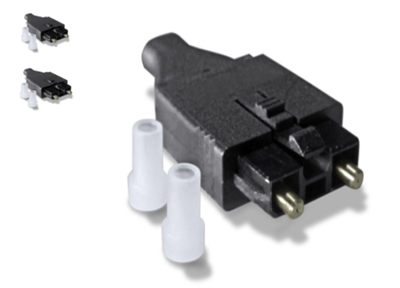

V-Pin Connectors (Black)

for 200/230 µm HCS

 for 400/430 µm HCS

V-Pin Connectors (Blue)

for 200/230 µm HCS

for 400/430 µm HCS

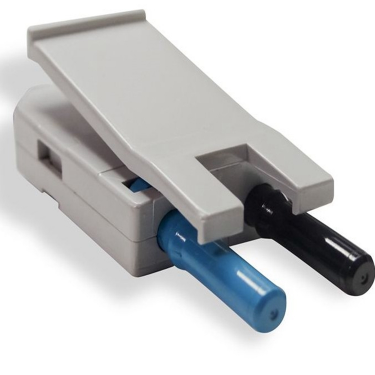

V-Pin-HPCS Connector for 200/230 µm   duplex

F07 DL-72

F07 CA7003

F07 CA9003

SGK S01-L2

TOCP200,200Q,

TOCP201Q

TOCP200X

F07 AMP Duplex

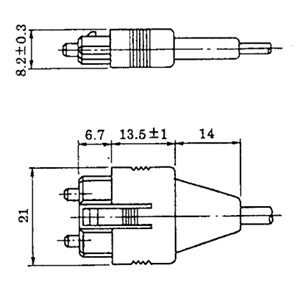

F07 CF-2071

F07 CF-2501

F07  CF-2071TE*3

F07 适配器

（TOCA250）

TOCP 100

F07 CA7103

SGK S01-L1

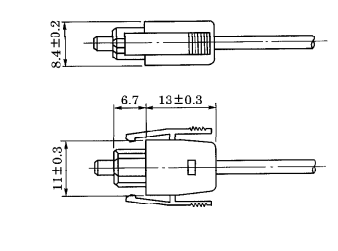

F05 CF-1571

F05 CF-1501

F05 TOCP 151

F05 TOCP 150

TOCP200 with

crimp ring

F05  CF-1001H

F05 CF-1071

3.Jinzhi provides H-PCF/HPCS/HCS/PCS fiber patch cords

ST Simplex  patchcord

ST duplex  patchcord

CA7003  patchcord

CA7103  patchcord

CA9003  patchcord

CF-1001  patchcord

DL-72  patchcord

SGK S01-L1

patchcord

SGK S01-L2

patchcord

HPCS-V-Pin  patchcord

HPCS-Avago-V-pin

patchcord

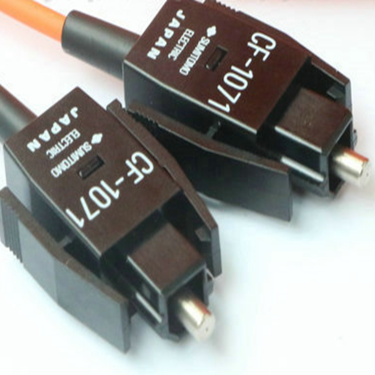

CF-1071  patchcord

CF-2071  patchcord

F07-AMP  patchcord

TOCP 100 patchcord

TOCP 200  patchcord

TOCP201QK  patchcord
