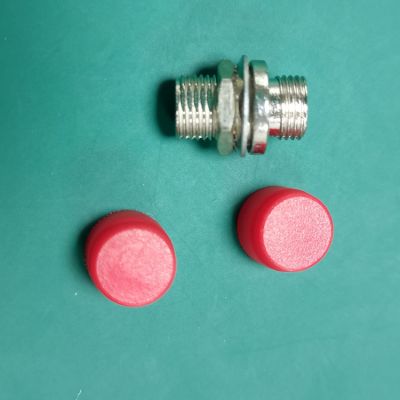

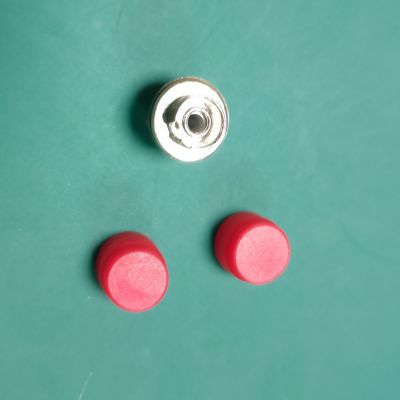

Flange adapter optical fiber coupler FC adaptor

Product Code：Flange adapter

Flange adapter optical fiber coupler FC adaptor

Advisory

  • optical fiber coupler

Flange adapter optical fiber coupler FC adaptor

Flange adapter Connector Applications:


Cable television network

Active device equipment

Optical fiber communication system

Optical fiber communication system, telecommunication network

Local area networks (LANs), wide area networks (WANs)

system debugging

7b1e092601c12e358c4edd11c1855db2_%E5%BE%AE%E4%BF%A1%E5%9B%BE%E7%89%87_202109071659446277380.jpg


optical fiber coupler Technical specifications:


Fiber type: dual mode

Test wavelength: 1310nm, 1550nm

Insertion loss: typical value ≤0.20dB,

Maximum value≤0.30dB

Return loss: ≥50.0dB

Durability: 1000 cycles of insertion and removal, typical

Change value ≤ 0.20dB

Working temperature: -20℃to +70℃

Storage temperature:-40℃to +85℃


7b1e092601c12e358c4edd11c1855db2_%E5%BE%AE%E4%BF%A1%E5%9B%BE%E7%89%87_202109071659446277380.jpg
