Jinzhi provides SMI LAN series plastic optical fiber products. Plastic optical fiber has been used in industrial control for more than 40 years

PRODUCTSPlastic fiber optic cables and connectors for lighting, industrial, and medical applications

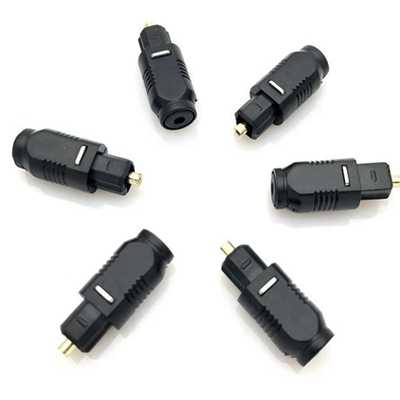

F05-TOSLINK audio fiber optic connector

Product Code:F05-TOSLINK audio fiber optic connector

F05-TOSLINK audio fiber optic connector

Advisory

  • F05-TOSLINK audio fiber optic connector

product description:


F05-TOSLINK audio  fiber optic connector


TOSLINK is also a standard optical digital audio interface that Japanese manufacturers generally use on CD players and MD players. It is used to transmit digital audio signals (left and right channels or multi-channels) between various equipment through a kind of light conductor, using light as a carrier. TOSLINK can use plastic optical fiber as a plastic optical fiber audio jumper. Commonly used standard PMMA core plastic optical fiber with a diameter of Ø1.0mm and a numerical aperture (NA) 0.5, the sheath is (flame-retardant) PVC, the colors are black, red, and blue, and the outer diameter of the sheath is mainly Ø2.2mm; 4.0mm; 5.0mm; 6.0mm, the length of the jumper is usually less than 50 meters.



Scope of application

Multimedia sound system

Digital cameras, video cameras, surveillance systems

HD audio and video playback system, MD player

Internet TV, digital TV, satellite TV

TV, broadband network, communication network system

3D, 4D HD digital cinema, digital imaging system

Multimedia entertainment systems for cars, airplanes, ships, etc.



Features

Minimum transmission loss, bit error rate (only about 2%)

Small size, soft, good windability, impact resistance

Easy installation and low cost

Light weight, non-conductive, stable performance

Eliminate radio waves and electromagnetic interference

High data transmission efficiency and high confidentiality



Application case diagram:
