product description:

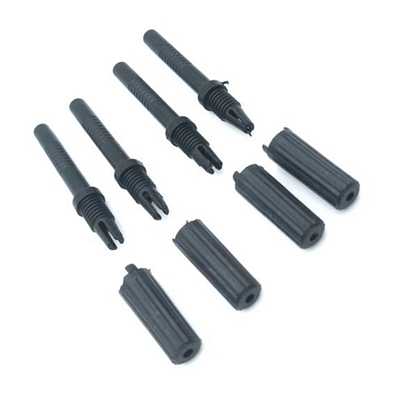

PRD-320-B1 optical fiber connector plastic optical fiber connector

product features:

Corrosion resistant and durable

Low insertion loss

PRD-320-B1 complies with IEC874-10 and

CECCBFOC/2.5, in line with

AT&T-STⅡ standard

Comply with IEC-61754

Available type: assembled

Complete set of connectors or provide

Assembled connector parts

Applications:

Cable television network

Active device equipment

Optical fiber communication system

Optical fiber communication system, telecommunication network

Local area networks (LANs), wide area networks (WANs)

system debugging

Technical specifications:

Fiber type: dual mode

Test wavelength: 1310nm, 1550nm

Insertion loss: typical value ≤0.20dB,

Maximum value≤0.30dB

Return loss: ≥50.0dB

Durability: 1000 cycles of insertion and removal, typical

Change value ≤ 0.20dB

Working temperature: -20℃to +70℃

Storage temperature:-40℃to +85℃
