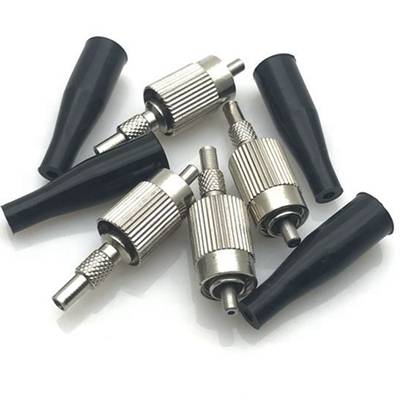

FC 250UM connector Plastic Fiber Optic

product description

product features:

FC=250UM fiber optic connector

FC=500UM fiber optic connector

FC=750UM fiber optic connector

FC=1000UM fiber optic connector

FC=1500UM fiber optic connector

Corrosion resistant and durable

Low insertion loss

FC complies with IEC874-10 and

CECCBFOC/2.5, in line with

AT&T-STⅡ standard

Comply with IEC-61754

Available type: assembled

Complete set of connectors or provide

Assembled connector parts

Applications:

Cable television network

Active device equipment

Optical fiber communication system

Optical fiber communication system, telecommunication network

Local area networks (LANs), wide area networks (WANs)

system debugging

FC 250UM connector

Technical specifications:

Fiber type: dual mode

Test wavelength: 1310nm, 1550nm

Insertion loss: typical value ≤0.20dB,

Maximum value≤0.30dB

Return loss: ≥50.0dB

Durability: 1000 cycles of insertion and removal, typical

Change value ≤ 0.20dB

Working temperature: -20℃to +70℃

Storage temperature:-40℃to +85℃
