product description:

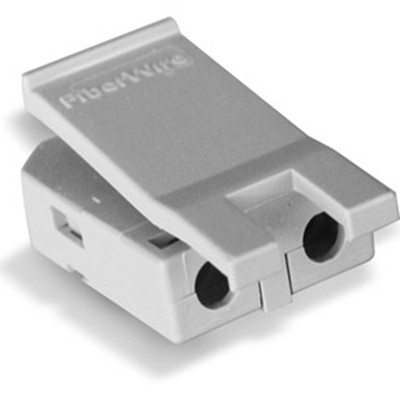

The Versatile Link interface is a universal interface standard for 980/1000μm POF optical cables launched by Avago for low-speed industrial optical links.

Its types are: simplex, simplex locking, duplex and duplex locking, all adopt plug-in installation, the connector is made of flame-retardant VALOX UL94 V-0 material (UL file number E121562). The polyethylene shell outside the plastic optical cable complies with UL VW-1 flame-retardant specifications (UL file number E89328), and the link transmission distance is extended by 120 meters at 40 kBd.

In addition to the original Avago plastic optical fiber, we can also use plastic optical fiber cables with various outer protective layers or other imported brand plastic optical fiber products such as Mitsubishi Eska and Toray Toray.

Application areas:

Industrial Automation Control Bus System

Industrial robot intelligent system and servo system

Communication Exchange System

Digital Multimedia System

Medical sensor system

Power system, etc.

Features:

Large transmission bandwidth, anti-electromagnetic interference, good flexibility, vibration resistance, stable and reliable signal transmission

High and low temperature resistance (-20 to 70 degrees Celsius)

Easy to install and connect, no maintenance required

Comply with Agilent Universal Connection System Standard

Comply with international standards (EIA/TIA 569, CENELEC EN 50174-2)

Comply with Profibus, Interbus, ControlNet and SERCOS standards

Application case diagram:
