Jinzhi provides SMI LAN series plastic optical fiber products. Plastic optical fiber has been used in industrial control for more than 40 years

PRODUCTSPlastic fiber optic cables and connectors for lighting, industrial, and medical applications

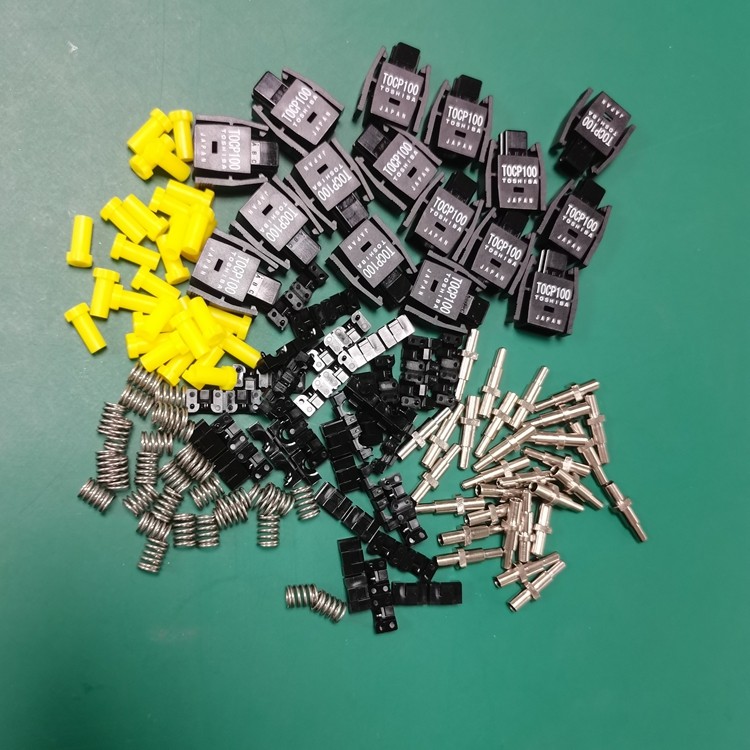

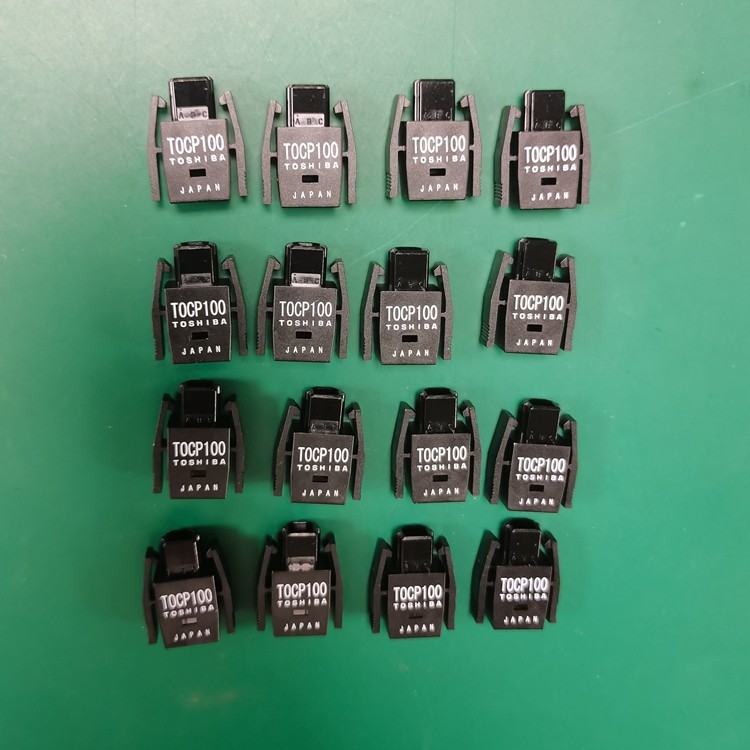

HCS/PCF fiber optic connector tocp100 200/233um

Product Code:tocp 100

IS F07 HCS 200/230 μm fiber jumping line meets JIS C5976-2001 industrial standards. tocp 100 It is suitable for the double -ring -circuit light link transmission system of more than 100 meters.

Advisory

  • tocp 100

HCS/PCF fiber optic connector  tocp100 200/233um


Product description

product information

Name:tocp 100,

Brand: Japanese resident friends

Features

JIS F07 HCS 200/230 μm fiber jumping line meets JIS C5976-2001 industrial standards.

It is suitable for the double -ring -circuit light link transmission system of more than 100 meters. The connector is imported from Japanese TOSHIBA, Sumitomo, and JAE.

Compatible with Mitsubishi Melsecnet PLC network and remote I/O network

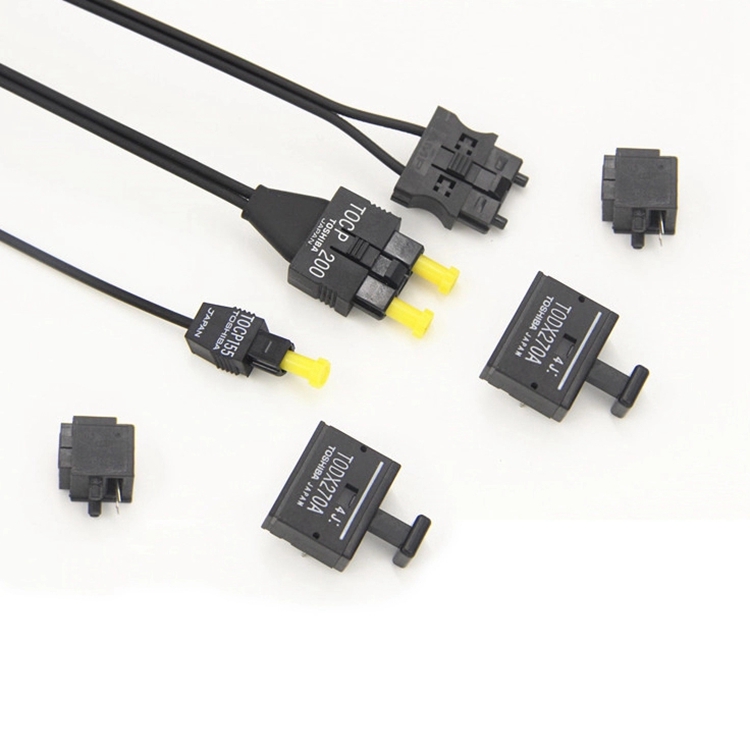

Compatible with TOSHIBA: TODX2860 (F) \ TODX2960 (F) \ TODX2701 (F);

Compatible with Sumitomo: DF-2710 \ DF-2810 \ DF-2910 \ DF-2310

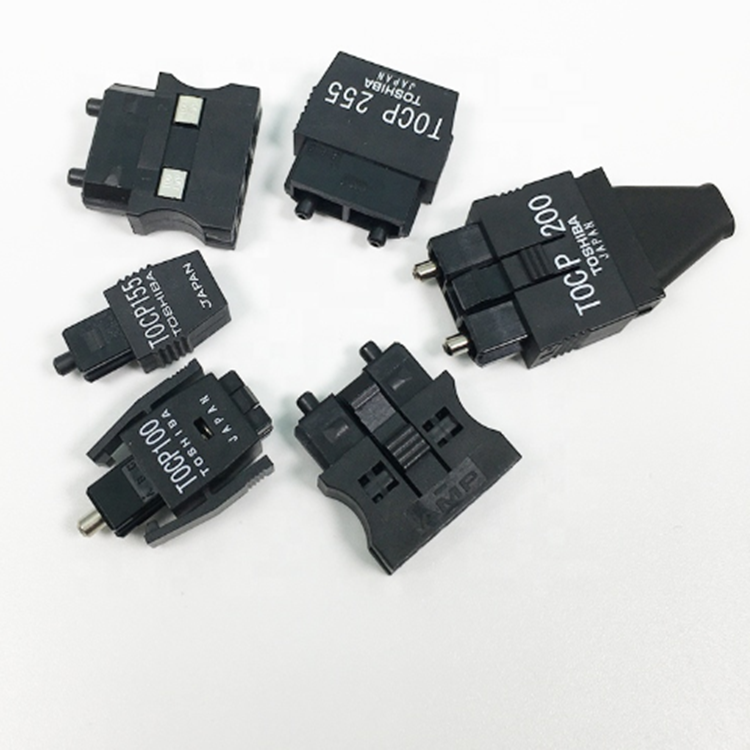

Compatible fiber connectors: CF-2071, CF2001, CF-2571, CF-2501, Z3C-D, TOCP200Q, CF-2D101-S-R, CF-2D103-S, IAT-4000, TOCA200, CF-AD1, CF-AD2



tocp 100

Applications:

Cable network

Active device equipment

Optical fiber communication system

Optical fiber communication system, telecommunication network

Local area networks (LANs), wide area networks (WANs)

system debugging
