Sumitomo Bachmann Wind Power Fiber DL-72 Fiber

The internal control network of the factory connects controllers, equipment, and sensors to monitor data and provide simple control feedback to the production line.

 Plastic optical fibers have been used in industrial control for more than 20 years, and are widely used in fieldbus, process control and digital control in industrial control. Many with Profibus, Interbus, ControlNet and SERCOS standards use plastic optical fiber in electromagnetic noise and strict environment, as the transmission medium, through the converter, POF can be connected with RS232, RS422, 100Mbps Ethernet, token network and other standard protocol interfaces , So as to provide a stable and reliable communication line in the harsh industrial manufacturing environment, high-speed transmission of industrial control signals and instructions, avoiding the danger of communication interruption caused by electromagnetic interference due to the use of all cable lines. For plastic optical fiber, because of its outstanding electrical "noise" immunity, it has become a very competitive product to replace copper cables in industrial application industrial control bus systems and automotive automation applications.

Application field

High-energy laser transmission, short- and medium-distance communication; automobile communication, avionics communication power station data acquisition and monitoring control system; power signal transmission, locomotive traction control medical sensing, factory automation control; laser treatment and surgery; solar power, wind power generation Industrial lighting, near infrared spectroscopy applications; optical temperature measurement, nuclear radiation monitoring industrial injection molding machines, textile machines, elevators and other equipment

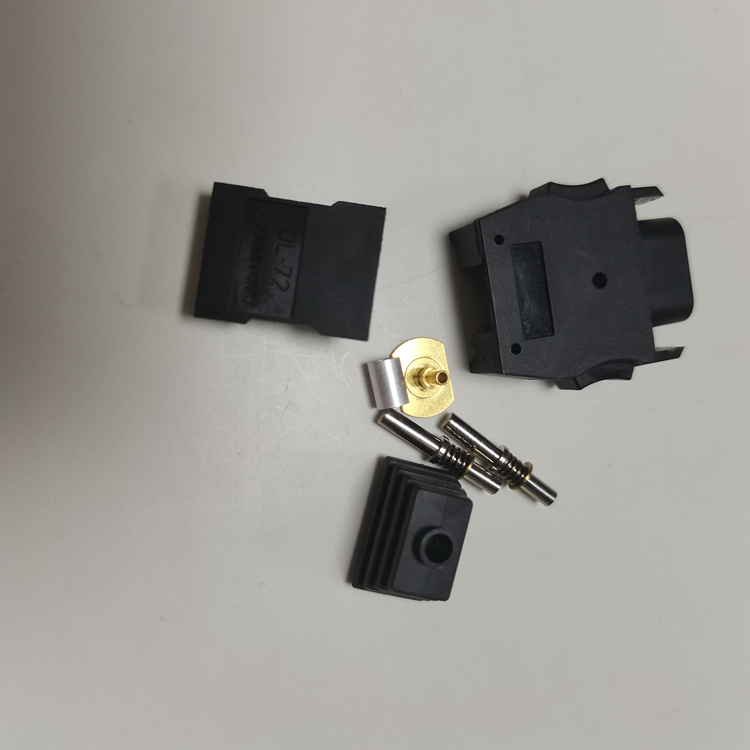

Connector type: TOCP200

Connector material: Plastic sheath\metal ferrule

Core diameter: Φ1.0

Core material: imported Japanese optical fiber

Finished product diameter: Φ2.2;

Outer cover color: fog black, other colors can be customized

Attenuation: less than 180dB/km

Working temperature: -55℃-+85℃

Standard length: 1000mm, any size of 0-100m can be customized

Meet the standard: European ROHS certification

CE certification
