Network Cable bosch lbb4416/01

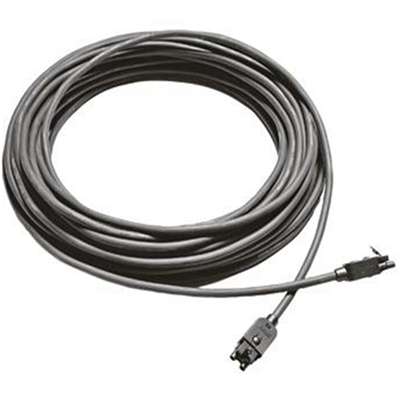

LBB 4416/00 100 This is a special cable that contains 2 plastic optical fibers for data and audio communication and 2 copper cores for power supply. This cable can be used to connect the CCU to an audio expander.

Connect the CCU to the audio expander.

bosch lbb4416/01

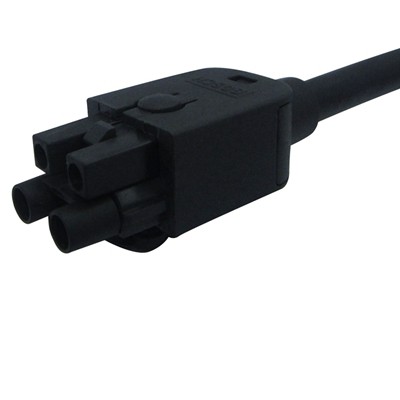

The length of the network cable will vary. The additional part of the type number (/XX) indicates the length of the cable. Only LBB 4416/00 end connector. Connector (LBB 4417/00) available separately

Order guide

bosch lbb4416/01 Installation of network cables without connectors

LBB 4416/01 fiber optic network cable with 0.5 m (1.6 ft) end connector

LBB 4416/02 optical fiber network cable 2 m (6.6 ft) end with connector

LBB 4416/05 fiber optic network cable with 5m (16ft) end connector

LBB 4416/10 fiber optic network cable with 10 m (33 ft) connector on one end

LBB 4416/20 fiber optic network cable with connectors at the end of 20 meters (66 feet)

LBB 4416/50 fiber optic network cable 50 m (164 ft) end with connector

LBB 4417/00 optical fiber network cable connector (20 pcs per set)

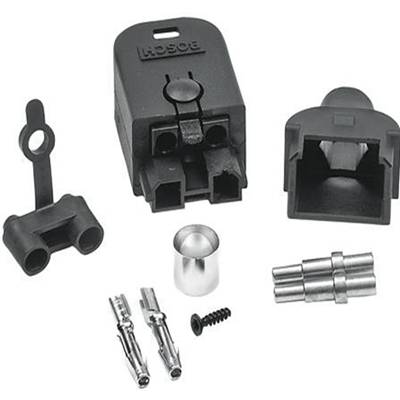

This set of network connectors contains 20 connectors that can be used with the network system cable (LBB4416/00). If you want to install cables or connectors, you need a fiber optic cable/connector tool kit.

bosch lbb4416/01

Order guide

LBB 4417/00 optical fiber network cable connector (20 pcs per set)

LBB 4418/00 Fiber Optic Cable and Connector Tool Kit

The kit contains the following items:

Standard cutting pliers

 Stripping pliers

Crimping Tool

POF cutting/stripping tool

POF positioning and serration tools

 Torx screwdriver

Back-up cutting system

LBB 4418/00 Fiber Optic Cable and Connector Tool Kit
