Plastic optical fiber has been used in industrial control for more than 20 years, and is widely used in fieldbus, process control and digital control in industrial control. Many factory internal control networks connect controllers, devices and sensors to monitor data and provide simple control feedback to the production line.

Performance:

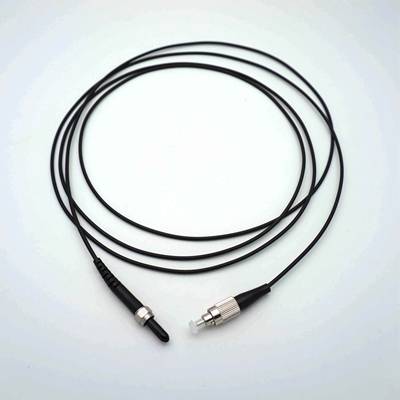

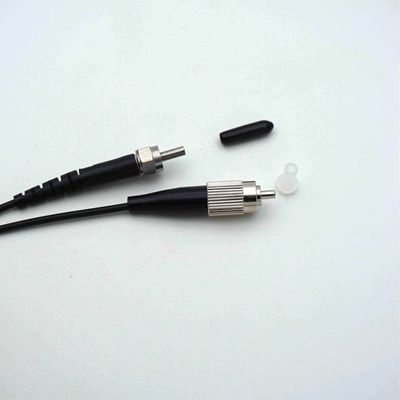

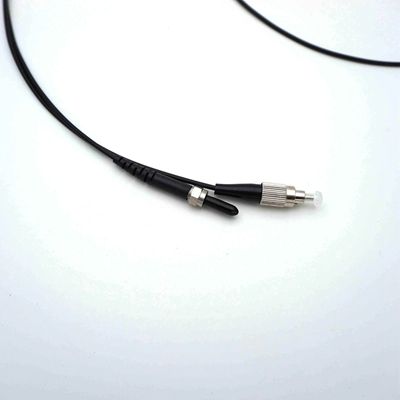

Interface type: SMA905 - FC plastic optical fiber jumper ,Patch cord

Core diameter: Φ1.0mm

Core material: domestic fiber or Japanese imported fiber

Finished product diameter: Φ2.2; optional Φ2.2mm-10.0mm

Outer material: CPE, PE, PVC

Cover color: matte black, other colors can be customized

Attenuation: less than 180dB/km

Working temperature: -55℃-85℃

Standard length: 1000mm, any size can be customized 0-100m

Compliance standard: European ROHS certification / CE certification / Toshiba standard

Scope of application:

Data transmission and industrial automation control bus system 2. Industrial robot intelligent system and servo system 3. Communication exchange system 4. Digital multimedia system 5. Medical sensor system 6. Power system, etc.
