Jinzhi provides SMI LAN series plastic optical fiber products. Plastic optical fiber has been used in industrial control for more than 40 years

PRODUCTSPlastic fiber optic cables and connectors for lighting, industrial, and medical applications

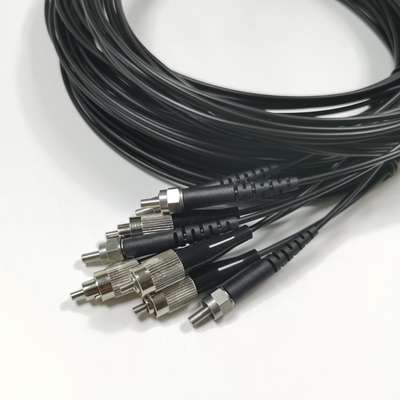

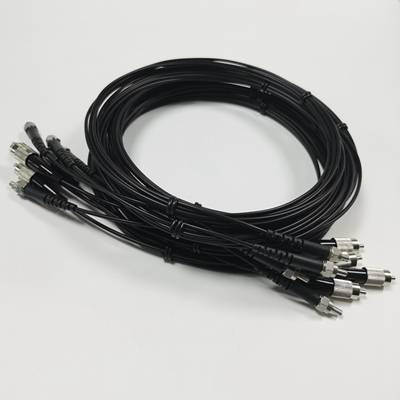

SMA905-FC 1000um 500um fiber optic patch cord

Product Code：

Interface type: SMA905 Core diameter: Φ1.0mm Core material: domestic fiber or Japanese imported fiber Finished product diameter: Φ2.2; optional Φ2.2mm-10.0mm Outer material: CPE, PE, PVC Cover color: matte black, other colors can be customized Attenuation: less than 180dB/km Working temperature: -55℃-+85℃ Standard length: 1000mm, any size can be customized 0-100m Compliance standard: European ROHS certification / CE certification / Toshiba standard

Advisory

Interface type: SMA905,SMA905-FC 1000um 500um fiber optic patch cord

Core diameter: Φ1.0mm

Core material: domestic fiber or Japanese imported fiber

Finished product diameter: Φ2.2; optional Φ2.2mm-10.0mm

Outer material: CPE, PE, PVC

Cover color: matte black, other colors can be customized

Attenuation: less than 180dB/km

Working temperature: -55℃-+85℃

Standard length: 1000mm, any size can be customized 0-100m

Compliance standard: European ROHS certification / CE certification / Toshiba standard



Scope of application:


Data Transmission and Industrial Automation Control Bus System

2. Industrial robot intelligent system and servo system

3. Communication system

4. Digital Multimedia System

5. Medical sensor system

6. Power system, etc.
