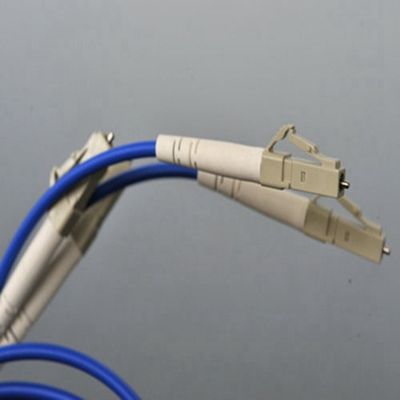

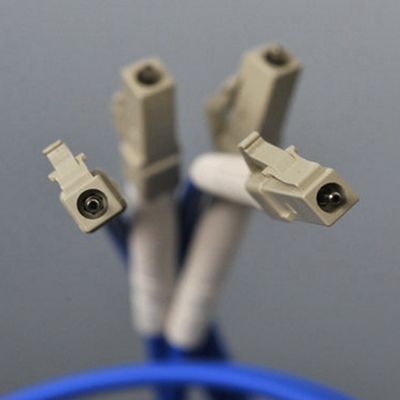

LC-LC plastic optical fiber cable

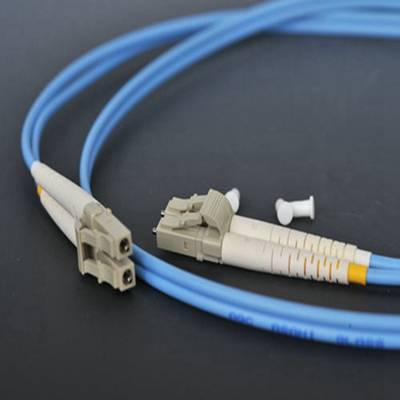

LC-LC plastic optical fiber patch cord

Optical fiber jumpers can be divided into ordinary single-mode, multi-mode, OM3, OM4 jumpers of silicon-based optical fibers according to different transmission media.

 According to the structure of the connector, they can be divided into: FC jumper, SC jumper, ST jumper, LC jumper, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, E2000 jumper, DIN jumper And other forms. The more common fiber jumpers can also be divided into FC-FC, FC-SC, LC-LC, FC-ST, SC-SC, SC-ST, etc. The number, length and physical structure of jumper cores can or can be independently defined by the customer. The company uses high-precision grinding machines, inspection control methods, and strict inspection institutions. All optical fiber sleeves are made of high-quality ceramics. Therefore, any configuration of fiber tails and jumpers can make the loss very small, ensuring extremely low loss . Insertion loss and reflection loss.

Features:

Low insertion loss

Good repeatability

Huge return loss

Good insertion effect

Good temperature stability

Scope of application:

Optical fiber communication system

Fiber Access Network

Optical fiber data transmission

Fiber optic cable TV

Local Area Network (LAN)

Test equipment

technical parameter

Connector type SC, FC, ST, LC

Bending radius: 3.8cm

Operating temperature range: -20~70℃

Joint material: ceramic ferrule

Bandwidth: 200Mhz.Km/850nm; 500Mhz.Km/1300nm

Repeated insertion and removal:<0.2dB, 1000 insertions and removals

Insertion loss:<0.2dB

Return loss: single mode UPC≥55dB, APC≥60dB, multimode UPC≥35d
