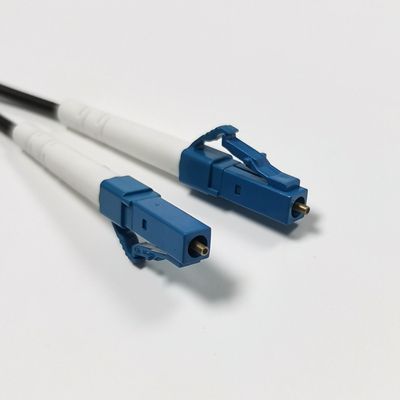

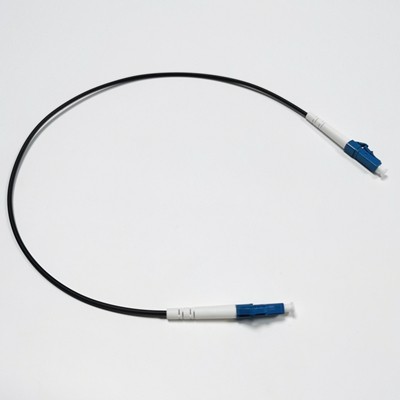

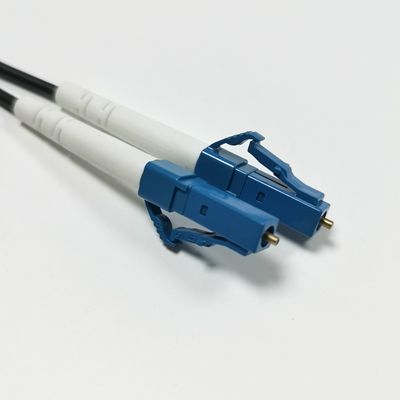

LC-LC fiber optic patch cord

Optical fiber jumpers can be divided into ordinary single-mode, multi-mode, OM3, OM4 jumpers of silicon-based optical fibers according to different transmission media.

 According to the structure of the connector, they can be divided into: FC jumper, SC jumper, ST jumper, LC jumper, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, E2000 jumper, DIN jumper And other forms. The more common fiber jumpers can also be divided into FC-FC, FC-SC, LC-LC, FC-ST, SC-SC, SC-ST, etc. The number, length and physical structure of jumper cores can or can be independently defined by the customer. The company uses high-precision grinding machines, inspection control methods, and strict inspection institutions. All optical fiber sleeves are made of high-quality ceramics. Therefore, any configuration of fiber tails and jumpers can make the loss very small, ensuring extremely low loss . Insertion loss and reflection loss.

Features:

lc cable

Low insertion loss

Good repeatability

Huge return loss

Good insertion effect

Good temperature stability

lc cable

technical parameter

Connector type SC, FC, ST, LC

Bending radius: 3.8cm

Operating temperature range: -20~70℃

Joint material: ceramic ferrule

Bandwidth: 200Mhz.Km/850nm; 500Mhz.Km/1300nm

Repeated insertion and removal:<0.2dB, 1000 insertions and removals

Insertion loss:<0.2dB

Return loss: single mode UPC≥55dB, APC≥60dB, multimode UPC≥35d
