Jinzhi provides SMI LAN series plastic optical fiber products. Plastic optical fiber has been used in industrial control for more than 40 years

PRODUCTSPlastic fiber optic cables and connectors for lighting, industrial, and medical applications

Miniplug Single Lock Audio Video Connector

Product Code：Miniplug

KINZ Best Price MINIPLUG Single Lock Metal Fiber Connector Audio Video Connector Toslink-Mini plug connector

Advisory

  • Miniplug

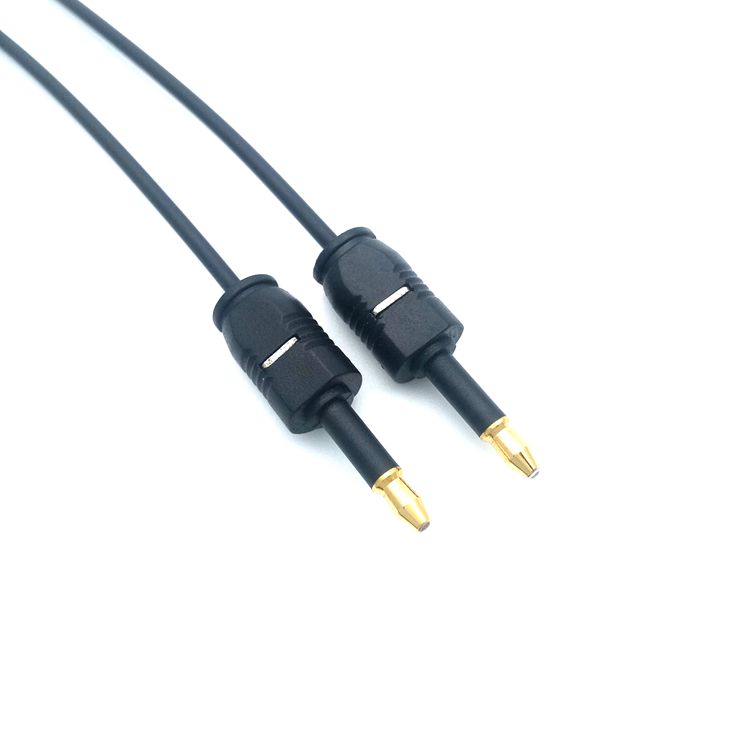

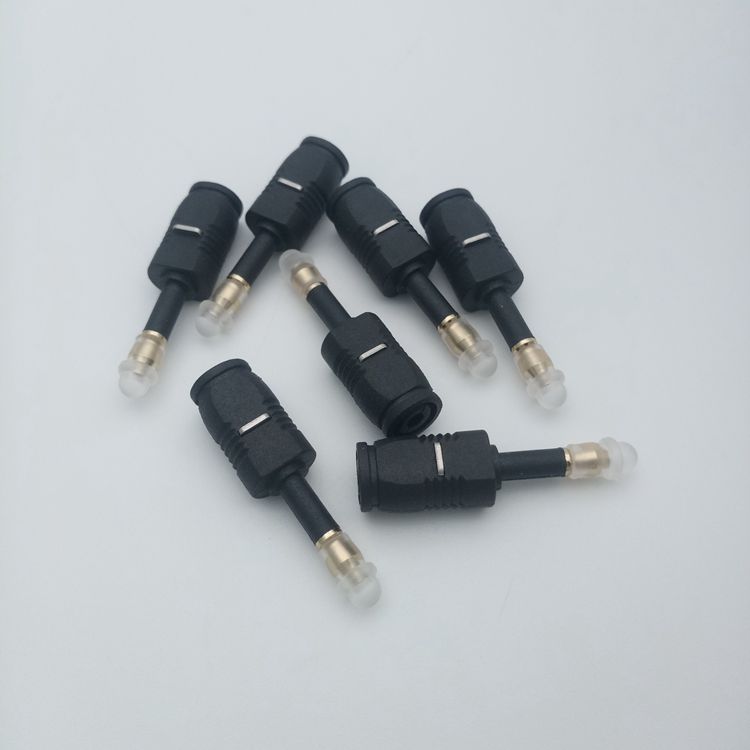

Miniplug Single Lock Audio Video Connector

product manual:

TOSLINK is a standard optical digital audio interface that Japanese manufacturers generally use on CD players and MD players.Miniplug


Scope of application:

Audio connection between DVD, CD player and amplifier;

Audio connection between computer and power amplifier;

Connection between PS II, PSIII, HDVD and power amplifier;

Audio connection between digital TV set-top box and power amplifier;

Miniplug

technical parameter:


芯径(mm)：

Ø1.0

线径(mm)：

Ø2.2 Ø4.0 Ø5.0 Ø6.0

外观：

黑色PE被覆

工作温度

-55℃～+70℃

连接器型号

 Tosllink连接器接卡紧式结构

传输损耗（波长：650nm）

180～200dB/km

插入损耗（波长：650nm）

Max：1.0dB

互换性

Max：1.0dB（随机变换）

最小弯曲半径

25mm

抗拉强度

Max：1.0dB（0～70N）

振动试验

Max：1.0dB（5～50Hz，1.5mm振幅）
