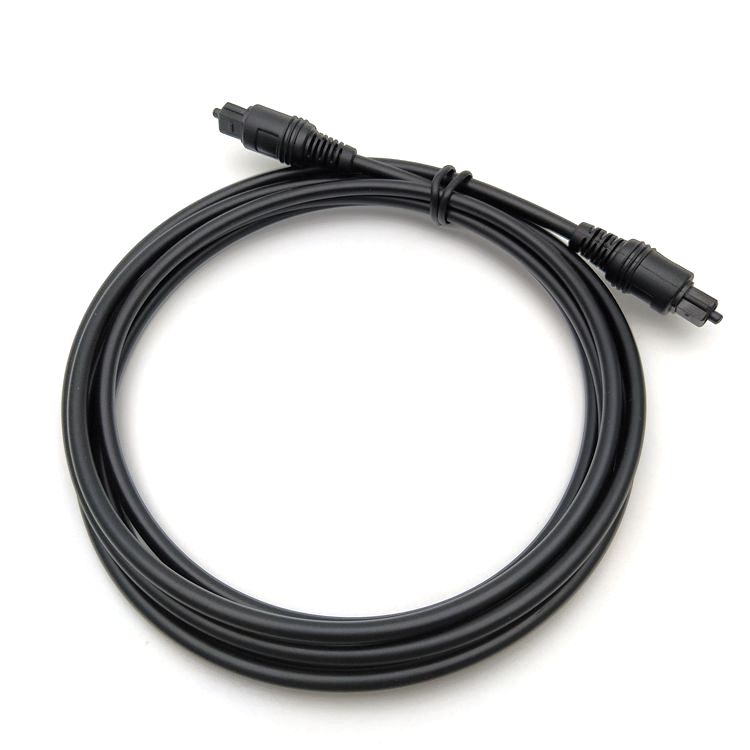

Digital Optical Audio Cable Toslink cable audio large diameter tape high-end optical fiber cable
product manual:
TOSLINK is a standard optical digital audio interface that Japanese manufacturers generally use on CD players and MD players. Digital Optical Audio Cable Toslink cable
Scope of application:
Audio connection between DVD, CD player and amplifier;
Audio connection between computer and power amplifier;
Connection between PS II, PSIII, HDVD and power amplifier;
Audio connection between digital TV set-top box and power amplifier;
Toslink cable
technical parameter:
芯径(mm)： | Ø1.0 |
线径(mm)： | Ø2.2 Ø4.0 Ø5.0 Ø6.0 |
外观： | 黑色PE被覆 |
工作温度 | -55℃～+70℃ |
连接器型号 | Tosllink连接器接卡紧式结构 |
传输损耗（波长：650nm） | 180～200dB/km |
插入损耗（波长：650nm） | Max：1.0dB |
互换性 | Max：1.0dB（随机变换） |
最小弯曲半径 | 25mm |
抗拉强度 | Max：1.0dB（0～70N） |
振动试验 | Max：1.0dB（5～50Hz，1.5mm振幅） |
