product manual:

MOST plastic optical fiber,，Loopback Fiber Patch Cord。car audio and video signal transmission control optical fiber cable

The MOST (Media Oriented Systems Transport) standard was jointly formulated by 16 major European car manufacturers in 2000. The standard specifies plastic optical fiber as the transmission medium of the data network in the car, and mainly supports the application of private information in the car. So that the transmission speed of information in the car reaches 900Mbit/s. M.O.S.T. (Media Oriented Systems Transport) is a local area network that connects audio devices, car TVs, global TV systems and car phone equipment. It occupies a leading position in the field of short-distance data transmission and industrial automation, and is especially important in improving the safety performance of automobiles and the function of information security. The development and application of plastic optical fiber connection technology; in conjunction with the application of plastic optical fiber in automobiles, a series of M.O.S.T. plastic optical fiber patch cords have been introduced to ensure the high quality of M.O.S.T. plastic optical fiber patch cords with strict end face polishing technology and rigorous optical fiber testing methods.

Features:

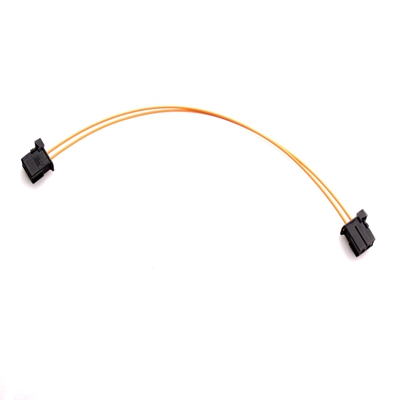

Loopback Fiber Patch Cord

Light weight, saving space for car wiring

Data is not affected by electromagnetic interference

High-speed data transmission, large data volume, MOST25 standard

The data rate is 25Mbps, MOST150 standard data

The rate is 150Mbps

Can transmit synchronous data, asynchronous data and control data

Support Plug and Play (Plugand Play) mechanism

More connected multimedia devices

Scope of application:

Digital broadcasting

Video display

Interactive security system

GPS navigation system

product features:

Using self-developed automotive MOST plastic optical fiber connector, bayonet design, compact structure, anti-pull, waterproof, high-temperature design, low insertion loss, high-precision coupling, can ensure data transmission, polishing and grinding, wire The outer cover is made of PE, PVC and other materials, anti-wear, anti-corrosion, anti-stress, high and low temperature resistance, non-conductivity, and no electromagnetic interference radiation. It is specially developed and designed for automotive multimedia systems with an assembly process that exceeds industry standards. It has been branded in Europe and Japan. Widely used in cars

Performance specifications:

Core diameter: Φ1.0

Core material: imported Japanese optical fiber

Finished product diameter: Φ2.3

Outer cover material: CPE, PE, PVC

Outer cover color: orange, other colors can be customized

Attenuation: less than 180dB/km

Working temperature: -55℃-+85℃

Standard length: 1000mm, can be customized 0-100m any size

Compliance with standards: European ROHS certification, CE certification
