Jinzhi provides SMI LAN series plastic optical fiber products. Plastic optical fiber has been used in industrial control for more than 40 years

PRODUCTSPlastic fiber optic cables and connectors for lighting, industrial, and medical applications

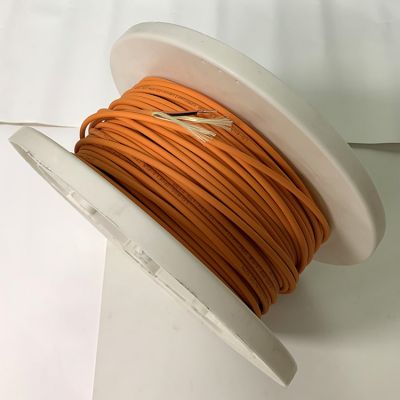

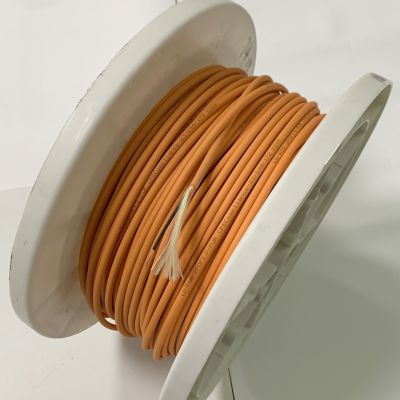

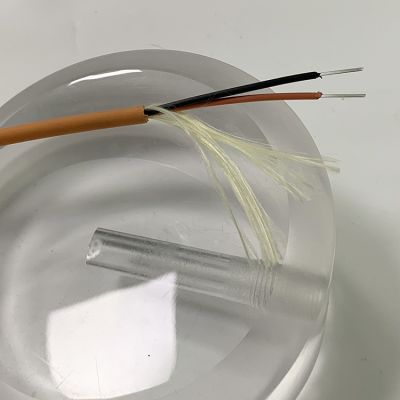

PUR Fiber Optic Cable POF 2*1.0mm -DX Round Si -POF 01 Sa -Pur- (2*2.2 mm) Orange Ral 2003 Round Duplex Cable

Product Code:PUR fiber optic cable

PUR Fiber Optic Cable POF 2*1.0mm -DX Round Si -POF 01 Sa -Pur- (2*2.2 mm) Orange Ral 2003 Round Duplex Cable

Advisory

  • PUR fiber optic cable

PUR Fiber Optic Cable POF 2*1.0mm -DX Round Si -POF 01 Sa -Pur- (2*2.2 mm) Orange Ral 2003 Round Duplex Cable

Armored 1000um, large core diameter fiber optic cable

Armored single core, plastic optical fiber plastic optical cable

Fiber optic spark fiber optic lamps for chemicals

 PUR fiber optic cable


  PUR fiber optic cable

Black-skinned soft fiber is a light-guiding fiber material. It consists of a clear fluoropolymer core + black PVC. It does not emit light by itself and is not connected to power. It needs to be illuminated by LED lights in order to glow. The color of the LED light when illuminated, using the principle of full emission of light, transmits light energy from one end of the optical fiber to the other end, forming an end light effect.



Application characteristics of plastic optical fiber:

Light weight, good toughness, strong shock and crack resistance, durable and reliable

No electromagnetic wave radiation, no electrical noise, strong anti-interference ability

Low maintenance cost, saving copper resources, low carbon energy saving and environmental protection

Easy to install, no welding required, free to cut

Good coupling, strong light guiding ability

High bandwidth, high speed, high performance

Good confidentiality, safe and reliable

Waterproof, moisture-proof, anti-magnetic, anti-lightning, can meet the requirements of specific occasions



Application scope of communication plastic optical fiber:



Fiber to the Home (FTTH)

With quartz fiber, it is effective at the end of broadband network. Plastic optical fiber is a good solution to the "last few hundred meters" problem.

for consumer electronics

Plastic optical fibers are used in navigation equipment, in-vehicle communication and in-vehicle entertainment audio-visual systems, in-vehicle TVs, DVD players, audio, lamps, digital switch sensor cables.

for automotive intelligence

Plastic optical fibers are used in navigation equipment, in-vehicle communication and in-vehicle entertainment audio-visual systems, in-vehicle TVs, DVD players, audio, lamps, digital switch sensor cables.

For industrial control and monitoring systems

Plastic optical fibers can be used for control lines in strong magnetic fields in power plants and substations, equipment-to-equipment connections in industrial controls, sensor information connections, detection of target changes, and network transmission of detection image information.

for military communications

It has been widely used in battlefield mobile networks, military command systems, combat vehicles, fighter jets, and warships' loading equipment, and its role in the future

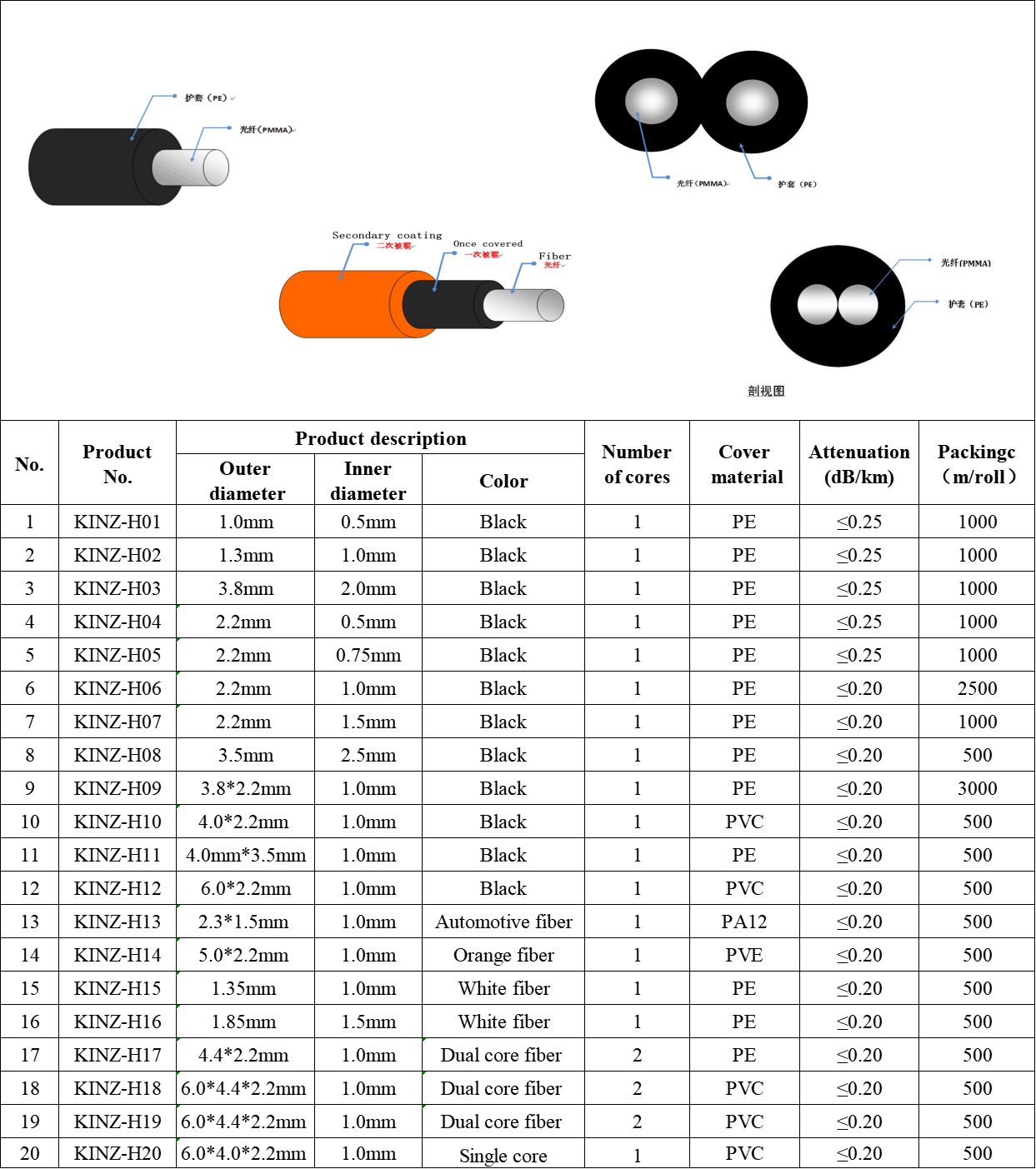

Selection table
